WR-04 Waveguide Rectangular Horn Antenna

25 dBi Gain, 170 to 260 GHz
SKU:SAR-2507-04-S2
Availability:IN STOCKPlease contact us if you need more units than what is available online.

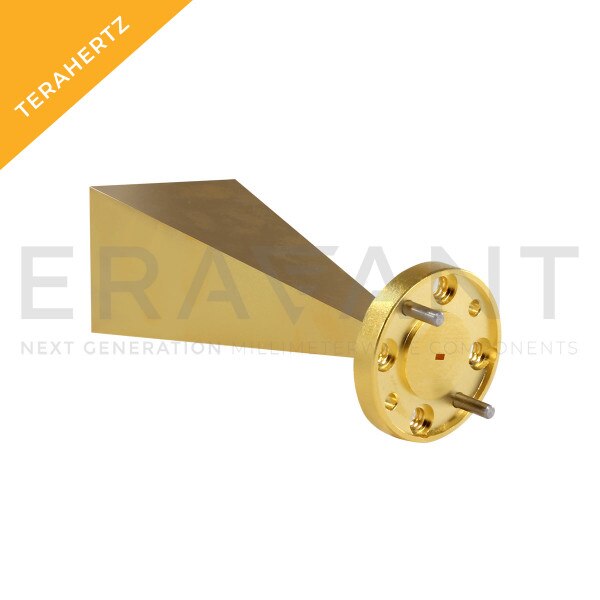

SAR-2507-04-S2 is a WR-04 pyramidal horn antenna that operates from 170 GHz to 260 GHz. The antenna offers 25 dBi nominal gain and a typical half power beamwidth of 6.25ׄ° degrees on the E-plane and 8.35° degrees on the H-plane. The antenna supports linear polarized waveforms. The input of this antenna is a WR-04 waveguide with UG-387/U-M Anti-Cocking flange.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency170 GHz
Maximum Frequency260 GHz
Gain25 dBi
3 dB Beamwidth, E-Plane6.25°
3 dB Beamwidth, H-Plane8.35°
Return Loss23 dB
Antenna PortWR-04 Waveguide
