WR-03 Waveguide Rectangular Horn Antenna

25 dBi Gain, 220 to 325 GHz
SKU:SAR-2507-03-S2
Availability:IN STOCKPlease contact us if you need more units than what is available online.

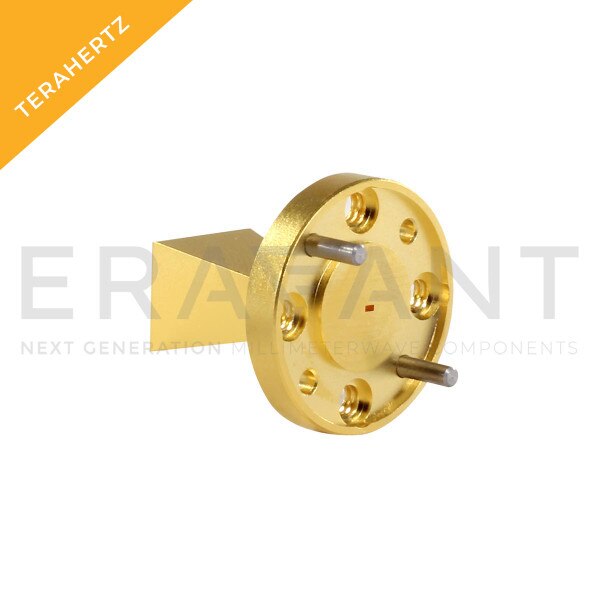

SAR-2507-03-S2 is a WR-03 pyramidal horn antenna that operates from 220 GHz to 325 GHz. The antenna offers 25 dBi nominal gain and a typical half power beamwidth of 9 degrees on the E-plane and 10 degrees on the H-plane. The antenna supports linear polarized waveforms. The input of this antenna is a WR-03 waveguide with UG-387/U-M flange.
ECCN: EAR99
Login to view pricing

Bulk Pricing

QuantityPrice
1 - 4$1,700.00
5 - 9$1,530.00
10 +$1,377.00

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency220 GHz
Maximum Frequency325 GHz
Gain25 dBi
3 dB Beamwidth, E-Plane
3 dB Beamwidth, H-Plane10°
Return Loss23 dB
Antenna PortWR-03 Waveguide
