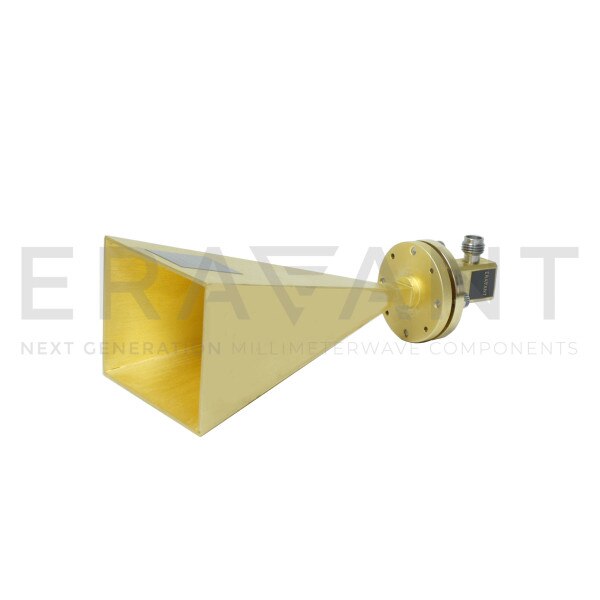

WR-19 Coaxial Rectangular Horn Antenna

25 dBi Gain, 40 to 60 GHz, 1.85 mm (F), Right Angle, U-Band
SKU:SAR-2507-19VF-R2
SAR-2507-19VF-R2 is a U-band pyramidal horn antenna with a right angle (90°) 1.85 mm (F) coax connector to cover the frequency range of 40 GHz to 60 GHz. The antenna offers 25 dBi nominal gain and a typical half power beamwidth of 9 degrees on the E-plane and 10 degrees on the H-plane. The antenna supports linear polarized waveforms. The model with a 1.85 mm (M) connector is offered under model number SAR-2507-19VM-R2.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency40 GHz
Maximum Frequency60 GHz
Gain25 dBi
3 dB Beamwidth, E-Plane
3 dB Beamwidth, H-Plane10°
Return Loss18 dB
Antenna Port90° 1.85 mm Female
