Ku-Band Microstrip Patch Array Antenna

25 dBi Gain, 17.4 to 17.7 GHz, 14 x 3° Beamwidth, SMA (F)
SKU:SAM-1731832503-SF-L1
Availability:IN STOCKPlease contact us if you need more units than what is available online.

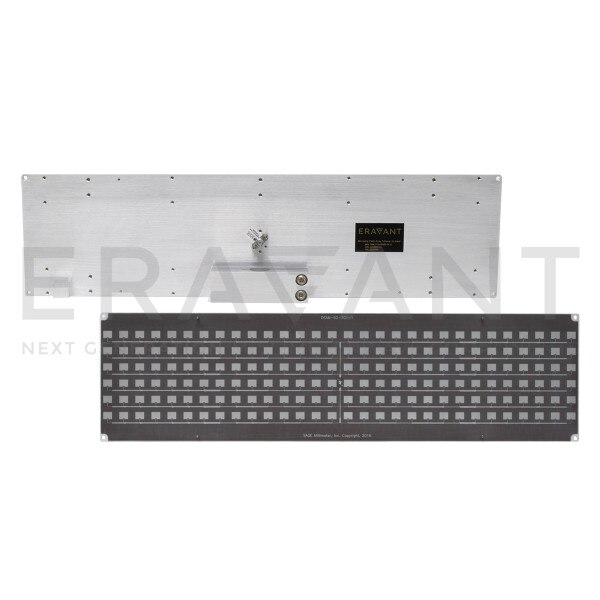

SAM-1731832503-SF-L1 is a linear polarized, 17.55 GHz microstrip patch array antenna. The antenna implements a series-fed power distribution to achieve low sidelobe levels. The antenna has a gain of 25 dBi and a beamwidth of 14 degrees vertically and 3 degrees horizontally, with a -15 dB sidelobe suppression level. The antenna is constructed with a high performing, low loss soft microwave substrate to achieve the best performance in the class. The RF interface is a female SMA connector.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency17.4 GHz
Maximum Frequency17.7 GHz
Gain25 dBi
3 dB Beamwidth (Vertical, Horizontal)14°, 3°
Sidelobe Level-15 dB
Return Loss9 dB
PolarizationLinear and Vertical
Antenna PortSMA (F)
