Ka-Band Conical Horn Antenna

25 dBi Gain, 26 to 33 GHz, 0.315" Diameter Circular Waveguide
SKU:SAC-2507-315-S2
Availability:IN STOCKPlease contact us if you need more units than what is available online.

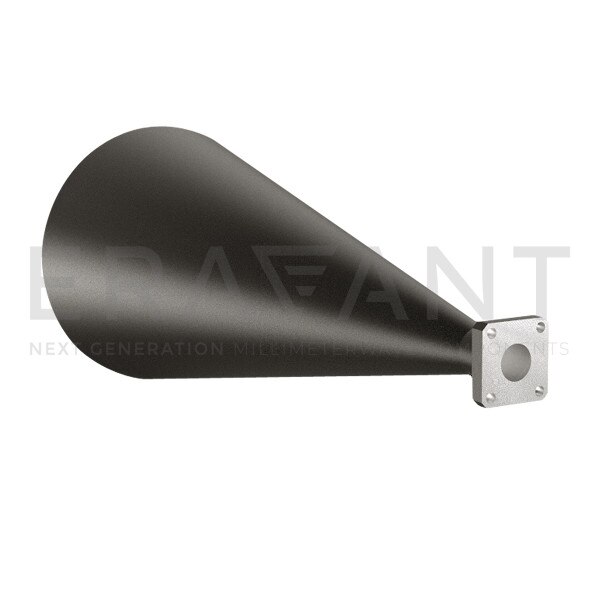

SAC-2507-315-S2 is a Ka-band conical horn antenna that operates from 26 to 33 GHz. The antenna offers 25 dBi nominal gain and a typical half power beamwidth of 9 degrees on the E-plane and 10 degrees on the H-plane. The horn also offers typical sidelobes of -18 dB on the E-plane and -28 dB on the H-plane. The conical horn can support linear and circular polarization. The input of this antenna is a 0.315" diameter circular waveguide with UG-599/U-M flange.
ECCN: EAR99
Login to View Pricing

Bulk Pricing

Quantity Price
1 - 9 $720.00
10 - 24 $648.00
25 - 49 $583.20

Bulk Availability

QuantityAvailability
1 In Stock

Bulk Pricing

Login to View Pricing

Technical Details

Minimum Frequency26 GHz
Maximum Frequency33 GHz
Gain25 dBi
3 dB Beamwidth, E-Plane9°
3 dB Beamwidth, H-Plane10°
Return Loss23 dB
PolarizationLinear and Circular
Antenna Port0.315" Dia Circular WG
