Q-Band Conical Horn Antenna

25 dBi Gain, 38.5 to 43 GHz, 0.219" Diameter Circular Waveguide
SKU:SAC-2507-219-S2
Availability:IN STOCKPlease contact us if you need more units than what is available online.

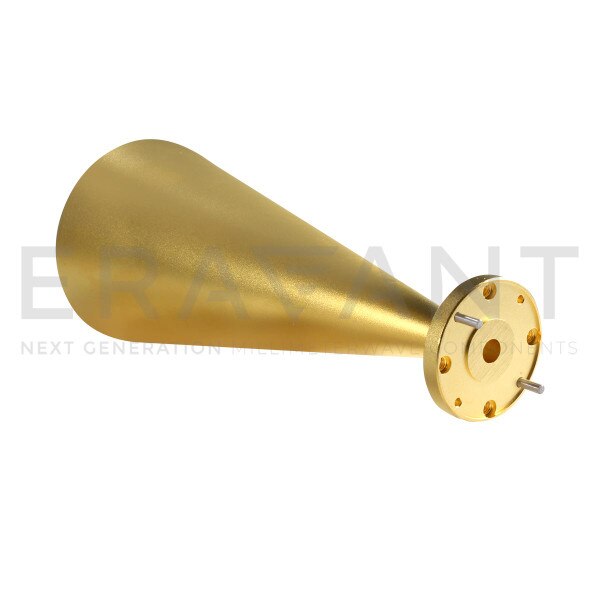

SAC-2507-219-S2 is a Q-band conical horn antenna that operates from 38.5 to 43 GHz. The antenna offers 25 dBi nominal gain and a typical half power beamwidth of 9 degrees on the E-plane and 10 degrees on the H-plane. The horn also offers typical sidelobes of -18 dB on the E-plane and -28 dB on the H-plane. The conical horn can support linear and circular polarization. The input of this antenna is a 0.219” diameter circular waveguide with UG-383/U-M anti-cocking flange.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency38.5 GHz
Maximum Frequency43 GHz
Gain25 dBi
3 dB Beamwidth, E-Plane
3 dB Beamwidth, H-Plane10°
Return Loss23 dB
PolarizationLinear and Circular
Antenna Port0.219" Dia Circular WG
