U-Band Conical Horn Antenna

25 dBi Gain, 43 to 50 GHz, 0.188" Diameter Circular Waveguide
SKU:SAC-2507-188-S2
Availability:IN STOCKPlease contact us if you need more units than what is available online.

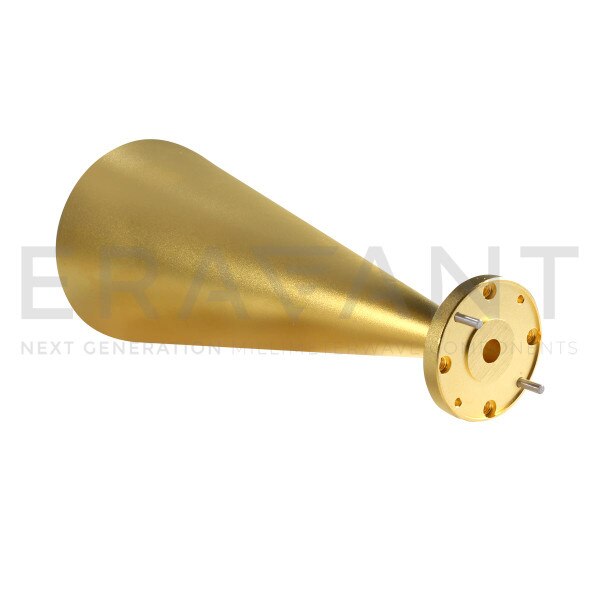

SAC-2507-188-S2 is a U-band conical horn antenna that operates from 43 to 50 GHz. The antenna offers 25 dBi nominal gain and a typical half power beamwidth of 9 degrees on the E-plane and 10 degrees on the H-plane. The horn also offers typical sidelobes of
-18 dB on the E-plane and -28 dB on the H-plane. The conical horn can support linear and circular polarization. The input of this antenna is a 0.188” diameter circular waveguide with UG-383/U-M anti-cocking flange.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Quantity Price
1 - 9 $650.00
10 - 24 $585.00
25 - 49 $526.50

Bulk Availability

QuantityAvailability

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency43 GHz
Maximum Frequency50 GHz
Gain25 dBi
3 dB Beamwidth, E-Plane
3 dB Beamwidth, H-Plane10°
Return Loss23 dB
PolarizationLinear and Circular
Antenna Port0.188" Dia Circular WG
