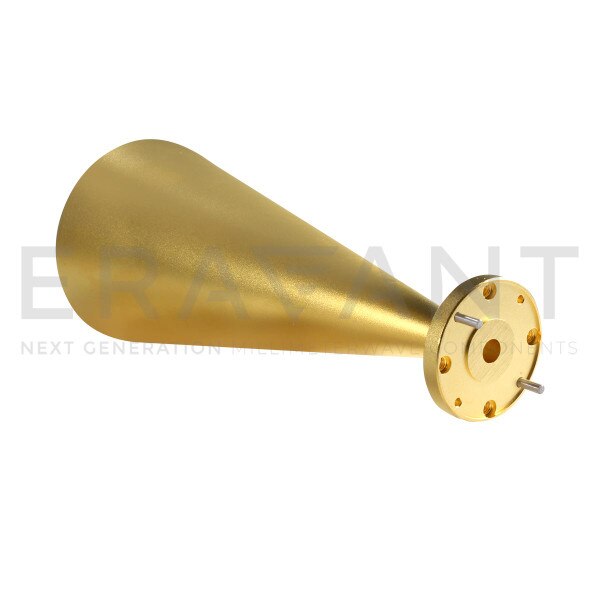

U-Band Conical Horn Antenna

25 dBi Gain, 50 to 60 GHz, 0.165" Diameter Circular Waveguide
SKU:SAC-2507-165-S2
Availability:4 to 6 Weeks ARO
SAC-2507-165-S2 is a U-band conical horn antenna that operates from 50 to 60 GHz. The antenna offers 25 dB nominal gain and a typical half powerbeam width of 9 degrees on the E-plane and 10 degrees on the H-plane. The horn also offers typical sidelobes of -18 dB on the E-plane and -28 dB on the H-plane. The conical horn can support linear and circular polarization. The input of this antenna is a 0.165" diameter circular waveguide with UG-383/U-M flange.
ECCN: EAR99
Login to View Pricing

Bulk Pricing

QuantityPrice
1 - 9$650.00
10 - 24$585.00
25 - 49$526.50

Bulk Pricing

Login to View Pricing

Technical Details

Minimum Frequency50 GHz
Maximum Frequency60 GHz
Gain25 dBi
3 dB Beamwidth, E-Plane
3 dB Beamwidth, H-Plane10°
Return Loss23 dB
PolarizationLinear and Circular
Antenna Port0.165" Dia Circular WG
