2-Way Right Angle Power Divider

24 to 44 GHz, 18 dB Port Isolation, WR-28 Waveguide, Ka-Band
SKU:SWP-24344302-28-S1
Availability:IN STOCKPlease contact us if you need more units than what is available online.

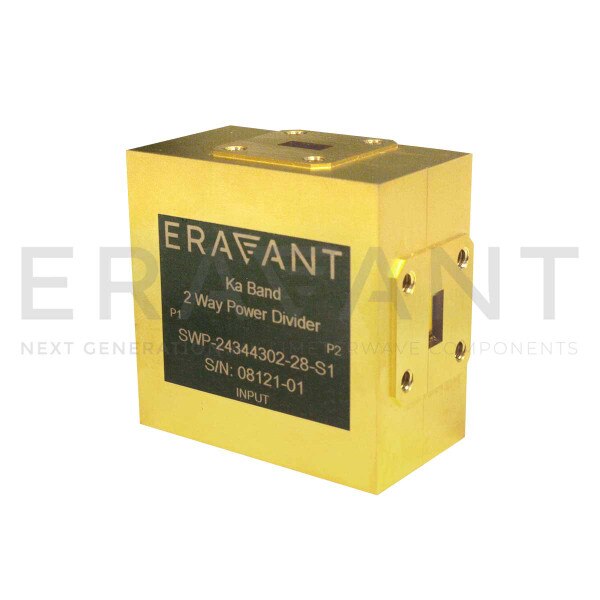

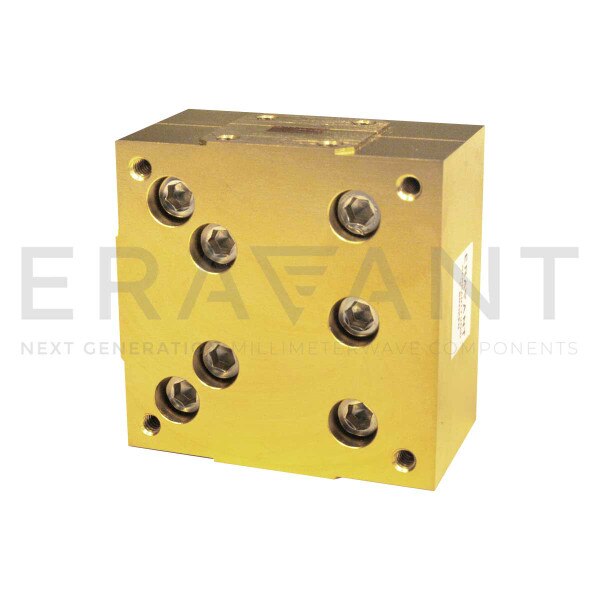

SWP-24344302-28-S1 is a broadband WR-28, 2-way right angle power divider that operates from 24 to 44 GHz. The power divider offers a typical insertion loss of 0.4 dB and typical isolation of 18 dB. All ports are well-balanced and in-phase for power dividing or combining applications across the band. The power divider is configured as a right-angle package with WR-28 waveguides and UG-599/U compatible flanges at all ports. An inline, 2-way configuration is offered under model SWP-24344302-28-E1. Other power splitting options, such as 4-way, 8-way, and 16-way division, are available for both right-angle and inline configurations under different model numbers.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency24 GHz
Maximum Frequency44 GHz
Insertion Loss0.4 dB
Port Isolation, 24 to 26.5 GHz12 dB
Port Isolation, 26.5 to 44 GHz18 dB
Power Unbalance±0.2 dB
Return Loss, 24 to 26.5 GHz12 dB
Return Loss, 26.5 to 44 GHz18 dB
Power Division2 Way
ConfigurationRight Angle (90°)
Input/Output PortsWR-28 WG with UG-599/U Flange
