X2 Frequency Extender

24 to 42 GHz, +20 dBm Adjustable Output Power, WR-28 Waveguide, Ka-Band
SKU:STE-KF228-S1

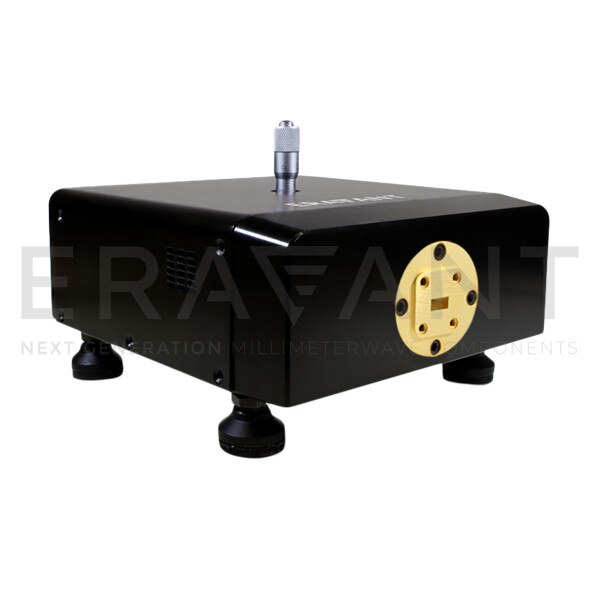

STE-KF228-S1 is a Ka-Band X2 frequency extender that uses an input frequency range of 12 to 21 GHz at +5 dBm along with harmonic generation and filtering to produce a 24 to 42 GHz RF signal. The extender is designed and manufactured as a bench top unit to extend the low frequency synthesizer or sweeper without losing all of the functionalities and features. The extender also features adjustable legs, which can also be removed, to allow for an easy test set up.
ECCN: 3A001.b.7
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Output Frequency24 GHz
Maximum Output Frequency42 GHz
Output Power+20 dBm
Minimum Input Frequency12 GHz
Maximum Input Frequency21 GHz
Input Power+5 dBm
Power Supply100 VAC to 240 VAC
Output PortWR-28 Waveguide
Input Port2.92 mm (F)
