K-Band Dual Channel, Short Range Ranging Sensor Heads, Limited Run

24.125 GHz,+3 dBm Transmitting Power, 27 dBi Antenna Gain
SKU:SSD-24303-27M-DW
Availability:IN STOCKPlease contact us if you need more units than what is available online.
This is a Limited Run model, so inventory may not be restocked. Customers who anticipate long-term requirements should contact us for an alternative model. Read more about Limited Run Products here.

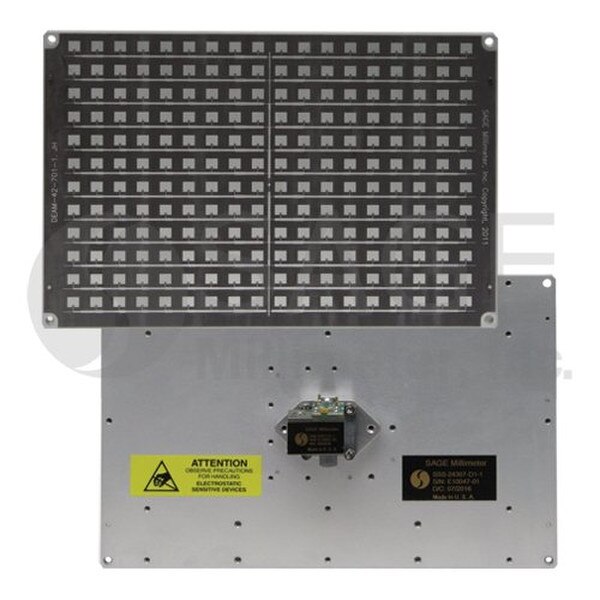

SSD-24303-27M-DW is a K Band, microstrip antenna-based ranging sensor head that is designed and manufactured for short range measurements of a moving or stationary target's range, speed and direction. The sensor head has a center frequency of 24.125 GHz and takes a nominal bias of +5 VDC/250 mA. The frequency modulation bandwidth of ±100 MHz minimum is realized via a tuning voltage of 0 to +20 Volts. The sensor heads are configured with a microstrip antenna, T/R diplexer, a dual channel (I/Q) receiver and a transmitter/receiver oscillator in an integrated die-cast housing. Sensor heads with a single receiver are offered under model number SSD-24303-27M-SW and can only detect the range and speed of a target.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

RF Center Frequency24.125 GHz
TX Power+3 dBm
Antenna Gain27 dBi
3 dB BW (H x V)4.6° x 6.8°
PolarizationLinear, V
DC Bias+5 VDC/250 mA
ChannelDual
RangeShort
