K-Band Single Channel Long Range Speed Sensor Heads, Product Discontinued

24.125 GHz,+17 dBm Transmitting Power, 22 dBi Antenna Gain
SKU:SSS-24317-22L-S1
This product has been discontinued and will not be restocked. Please contact us for an alternative model. Read more about Limited Run Products here.

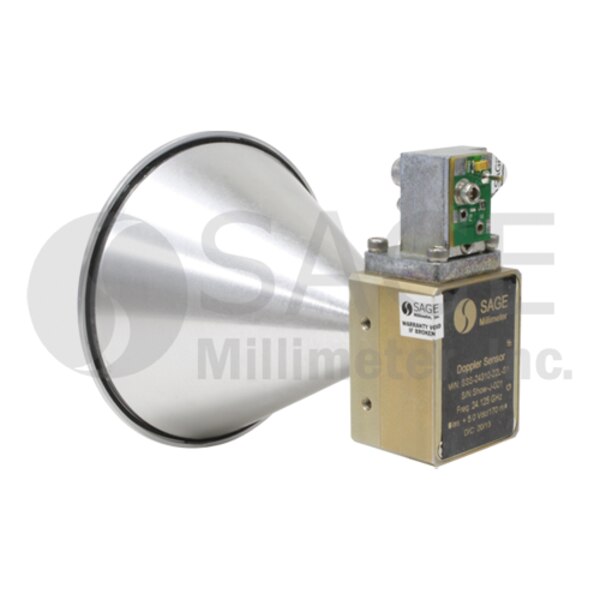

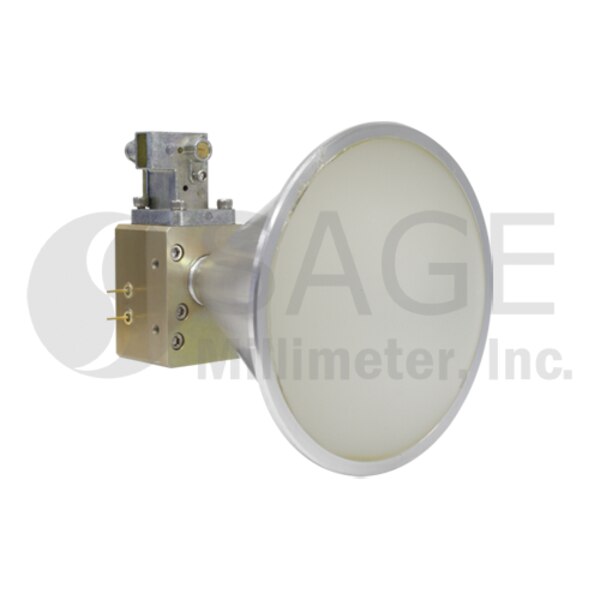

SSS-24317-22L-S1 is a K Band, lens antenna-based Doppler sensor head that is designed and manufactured for long range measurements of a moving target's speed. The sensor head has a center frequency of 24.125 GHz and takes a nominal bias of +5.0 VDC/650 mA. The sensor heads are configured with a lens corrected antenna, T/R diplexer, a single channel receiver and a transmitter/receiver oscillator in an integrated package. Sensor heads with a dual receiver are offered under model number SSS-24317-22L-D1 and can detect both the speed and direction of a moving target.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

RF Center Frequency24.125 GHz
TX Power+17 dBm
Antenna Gain22 dBi
3 dB BW (H x V)12° x 12°
PolarizationRH Circular
DC Bias+5 VDC/650 mA
ChannelSingle
RangeLong
