K-Band Dual Channel, Long Range Ranging Sensor Heads, Product Discontinued

24.125 GHz,+10 dBm Transmitting Power, 22 dBi Antenna Gain
SKU:SSD-24307-22L-D1
This product has been discontinued and will not be restocked. Please contact us for an alternative model. Read more about Limited Run Products here.

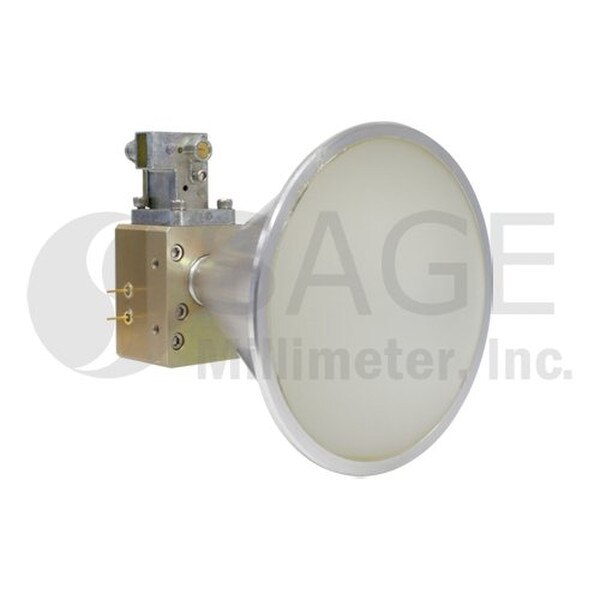

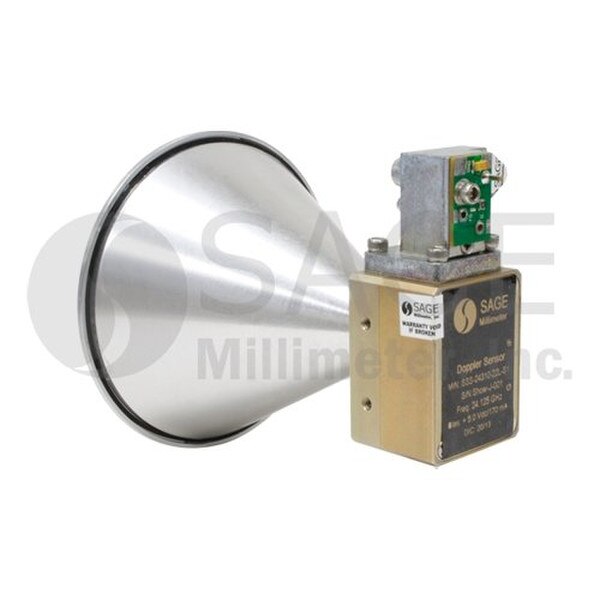

SSD-24307-22L-D1 is a K Band, lens antenna-based ranging sensor head that is designed and manufactured for long range measurements of a moving or stationary target's range, speed and direction. The sensor head has a center frequency of 24.125 GHz and takes a nominal bias of +5.0 VDC/250 mA. The frequency modulation bandwidth of ±75 MHz minimum is realized via a tuning voltage of 0 to +20 Volts. The sensor heads are configured with a lens corrected antenna, T/R diplexer, a dual channel (I/Q) receiver and a transmitter/receiver oscillator in an integrated package. Sensor heads with a single receiver are offered under model number SSD-24307-22L-S1 and can only detect the range and speed of a target.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

RF Center Frequency24.125 GHz
TX Power+10 dBm
Antenna Gain22 dBi
3 dB BW (H x V)12° x 12°
PolarizationRH Circular
DC Bias+5 VDC/250 mA
ChannelDual
RangeLong
