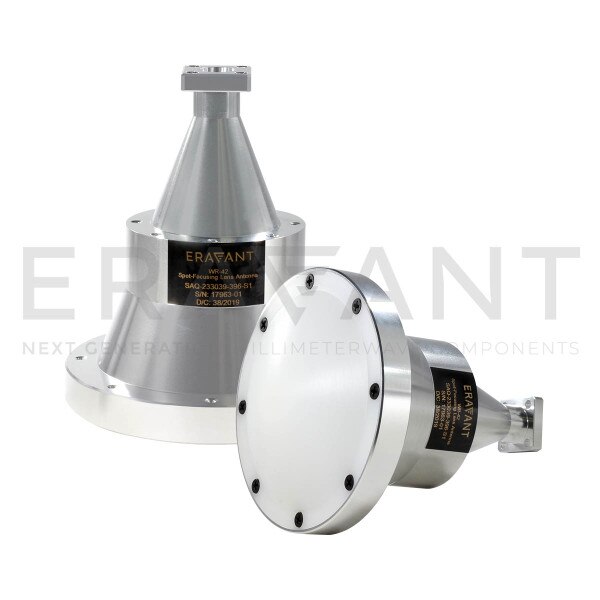

K-Band Spot-Focusing Lens Antenna

SAQ-233039-396-S1 is a K-band spot-focusing lens antenna that delivers a 10 dB spot size of 1.27" at a focal length of 3.94". The antenna employs a low loss lens to offer excellent aperture efficiency at 23 GHz. The lens antenna is equipped with a 0.396" diameter circular waveguide and UG-595/U-M flange as its input port. It supports linear and circular polarized waveforms. For the intended application, it is recommended that customers purchase spot-focusing antennas (SAQ Series) in a pair of two (Qty. 2).
