WR-62 Waveguide Rectangular Horn Antenna

23 dBi Gain, 12.4 to 18 GHz, Ku-Band
SKU:SAR-2309-62-S2
Availability:Contact Us for Quote

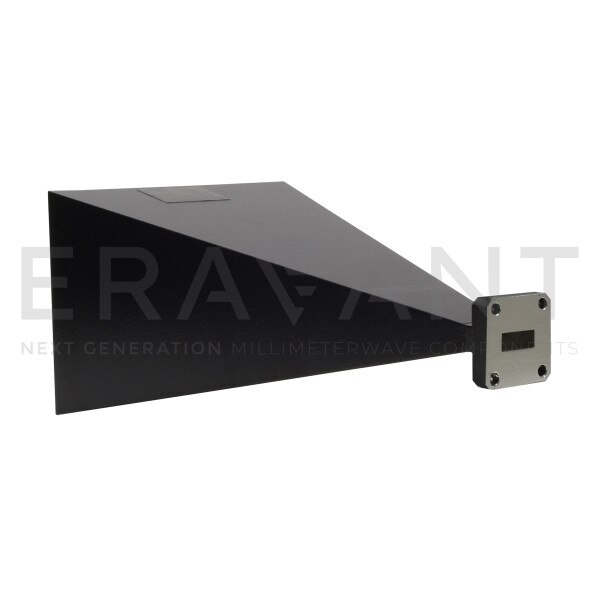

SAR-2309-62-S2 is a Ku-band pyramidal horn antenna that operates from 12.4 GHz to 18 GHz. The antenna offers 23 dBi nominal gain and a typical half power beamwidth of 10 degrees on the E-plane and 11 degrees on the H-plane. The input of this antenna is a WR-62 waveguide with a UG-419/U flange.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency12.4 GHz
Maximum Frequency18 GHz
Gain23 dBi
3 dB Beamwidth, E-Plane10°
3 dB Beamwidth, H-Plane11°
Return Loss27 dB
Antenna PortWR-62 Waveguide
