WR-28 Coaxial Rectangular Horn Antenna

23 dBi Gain, 26.5 to 40 GHz, 2.92 mm (F), Ka-Band
SKU:SAR-2309-28KF-E2

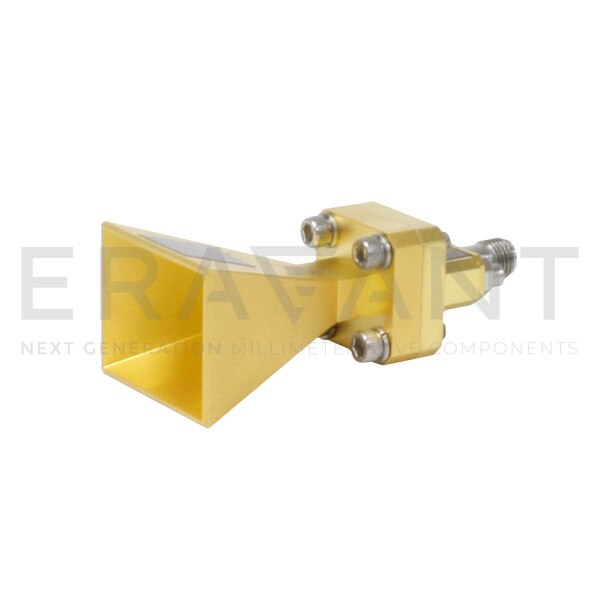

SAR-2309-28KF-E2 is a Ka-band pyramidal horn antenna with a end launch (180°) 2.92 mm (F) coax connector to cover the frequency range of 26.5 GHz to 40 GHz. The antenna offers 23 dBi nominal gain and a typical half power beamwidth of 10 degrees on the E-plane and 11 degrees on the H-plane. The antenna supports linear polarized waveforms. The model with 2.92 mm (M) connector is offered under model number SAR-2309-28KM-E2.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency26.5 GHz
Maximum Frequency40 GHz
Gain23 dBi
3 dB Beamwidth, E-Plane10°
3 dB Beamwidth, H-Plane11°
Return Loss20 dB
Antenna Port2.92 mm Female
