WR-15 Coaxial Rectangular Horn Antenna

This model may be purchased with optional antenna testing services.
A gain measurement test is offered under service number FTA-WR15GAIN-AA.
A 2D pattern measurement test is offered under service number FTA-WR15PATT-AA.

CLICK HERE to read more about our antenna measurement capabilities.

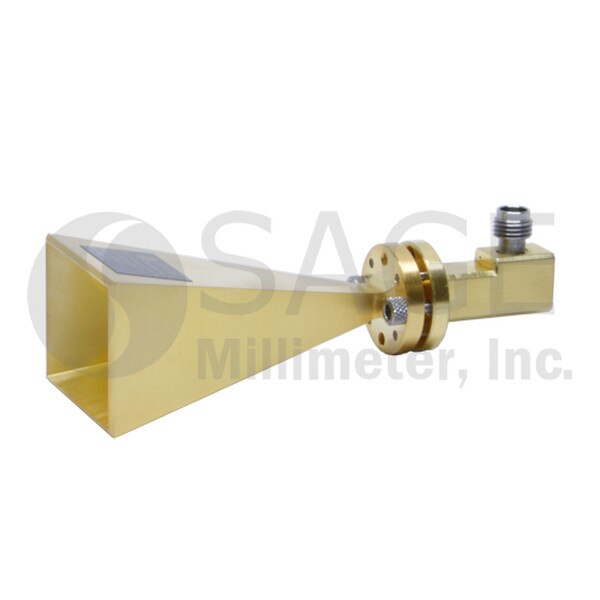

SAR-2309-15VF-R2 is a V-band pyramidal horn antenna with a right angle (90°) 1.85 mm (F) coax connector to cover the frequency range of 50 GHz to 70 GHz. The antenna offers 23 dBi nominal gain and a typical half power beamwidth of 10.5 degrees on the E-plane and 12 degrees on the H-plane. The antenna supports linear polarized waveforms. End launch (180°) 1.85 mm (F) connector is offered under model number SAR-2309-15VF-E2.
