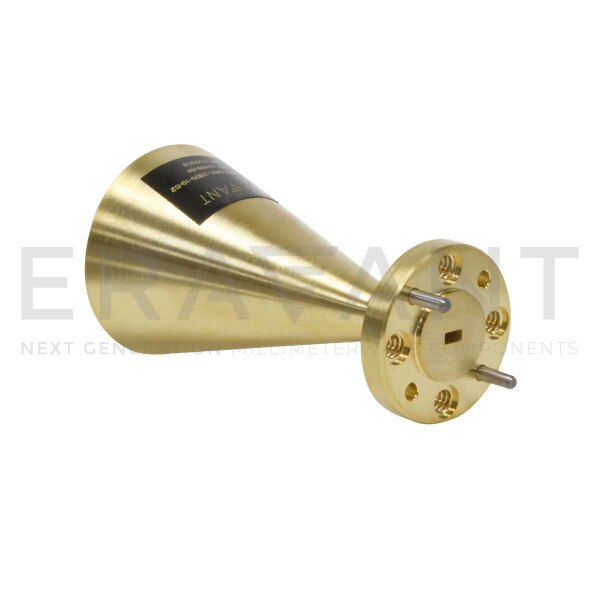

V-Band Conical Horn Antenna

23 dBi Gain, 58 to 68 GHz, WR-15 Waveguide
SKU:SAC-2309-15-S2
Availability:IN STOCKPlease contact us if you need more units than what is available online.
SAC-2309-15-S2 is a V-band conical horn antenna with a WR-15 rectangular waveguide interface that operates from 58 to 68 GHz. The antenna offers 23 dBi nominal gain and a typical half power beamwidth of 11 degrees on the E-plane and 13 degrees on the H-plane. The horn also offers typical sidelobes of -20 dB on the E-plane and -28 dB on the H-plane. The conical horn can support linear polarization. The RF connector of this antenna is a WR-15 waveguide with UG-385/U flange.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency58 GHz
Maximum Frequency68 GHz
Gain23 dBi
3 dB Beamwidth, E-Plane11°
3 dB Beamwidth, H-Plane13°
Return Loss23 dB
PolarizationLinear
Antenna PortWR-15 Waveguide
