W-Band Conical Horn Antenna, Wellprice

23 dBi Gain, 87 to 100 GHz, WR-10 Waveguide
SKU:SAC-2309-10-S2-WP
Availability:IN STOCKPlease contact us if you need more units than what is available online.
This is a Wellprice model that may not be offered in the future. Customers who anticipate long-term requirements should consider SAC-2309-10-S2 as an alternative solution. Read more about Wellprice Products here.

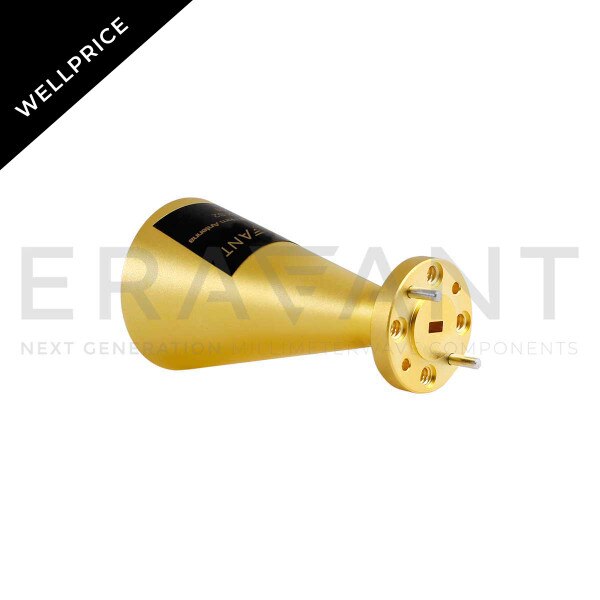

SAC-2309-10-S2-WP is a W-band conical horn antenna that operates from 87 to 100 GHz. The antenna offers 23 dB nominal gain and a typical half powerbeam width of 11 degrees on the E-plane and 13 degrees on the H-plane. The horn also offers typical sidelobes of -20 dB on the E-plane and -28 dB on the H-plane. The conical horn can support linear polarization. The input of this antenna is a WR-10 waveguide with UG-387/U-M flange.
ECCN: EAR99
Login to view pricing

Technical Details

Minimum Frequency87 GHz
Maximum Frequency100 GHz
Gain23 dBi
3 dB Beamwidth, E-Plane11°
3 dB Beamwidth, H-Plane13°
Return Loss23 dB
PolarizationLinear
Antenna PortWR-10 Waveguide
