WR-19 Coaxial Rectangular Horn Antenna

This model may be purchased with optional antenna testing services.
A gain measurement test is offered under service number FTA-0670GAIN-AA.
A 2D pattern measurement test is offered under service number FTA-0670PATT-AA.

CLICK HERE to read more about our antenna measurement capabilities.

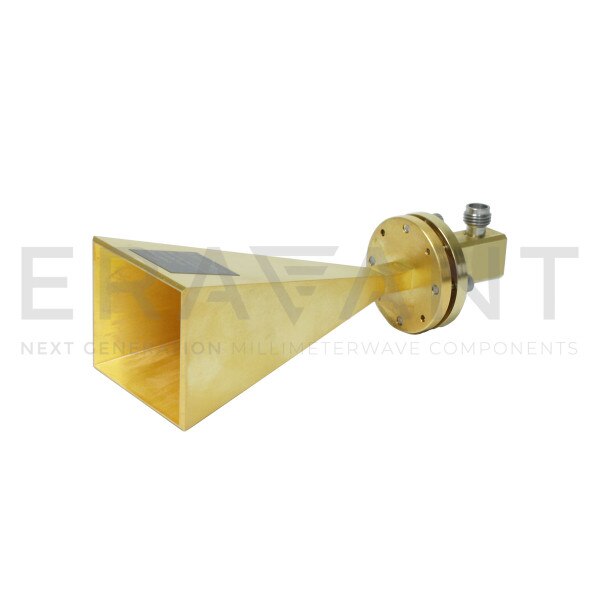

SAR-2309-19VF-R2 is a U-band pyramidal horn antenna with a right angle (90°) 1.85 mm (F) coax connector to cover the frequency range of 40 GHz to 60 GHz. The antenna offers 23 dBi nominal gain and a typical half power beamwidth of 10 degrees on the E-plane and 11 degrees on the H-plane. The antenna supports linear polarized waveforms. The model with a 1.85 mm (M) connector is offered under model number SAR-2309-19VM-R2.
