WR-28 Coaxial Rectangular Horn Antenna

23 dBi Gain, 26.5 to 40 GHz, 1.85 mm (F), Ka-Band
SKU:SAR-2309-28VF-R2
Availability:IN STOCKPlease contact us if you need more units than what is available online.

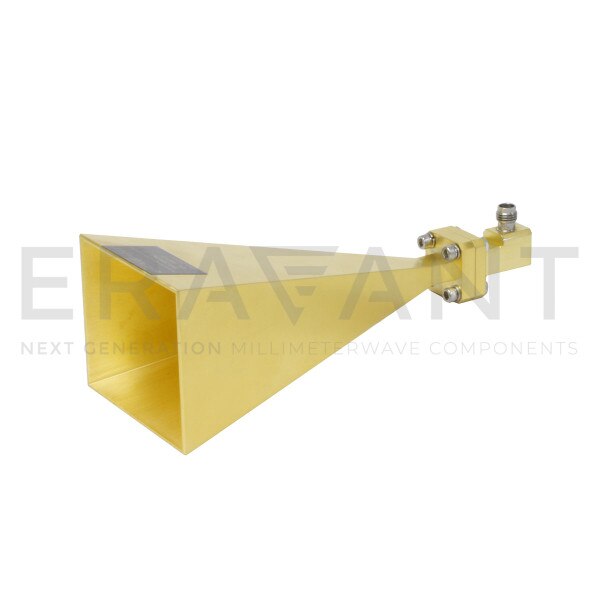

SAR-2309-28VF-R2 is a Ka-band pyramidal horn antenna with a right angle (90°) 1.85 mm (F) coax connector to cover the frequency range of 26.5 GHz to 40 GHz. The antenna offers 23 dBi nominal gain and a typical half power beamwidth of 10 degrees on the E-plane and 11 degrees on the H-plane. The antenna supports linear polarized waveforms. The model with 1.85 mm (M) connector is offered under model number SAR-2309-28VM-R2.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency26.5 GHz
Maximum Frequency40 GHz
Gain23 dBi
3 dB Beamwidth, E-Plane10°
3 dB Beamwidth, H-Plane11°
Return Loss20 dB
Antenna Port90° 1.85 mm Female
