Ka-Band Conical Horn Antenna, Wellprice

This is a Wellprice model that may not be offered in the future. Customers who anticipate long-term requirements should consider SAC-2309-250-S2 as an alternative solution. Read more about Wellprice Products here.

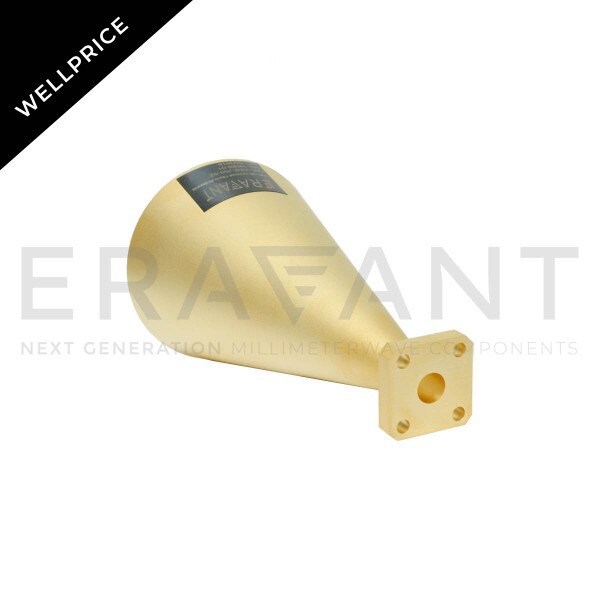

SAC-2309-250-S2-WP is a Ka-band conical horn antenna that operates from 33 to 38.5 GHz. The antenna offers 23 dBi nominal gain and a typical half power beamwidth of 11 degrees on the E-plane and 13 degrees on the H-plane. The horn also offers typical sidelobes of -20 dB on the E-plane and -28 dB on the H-plane. The conical horn can support linear and circular polarization. The input of this antenna is a 0.250" diameter circular waveguide with UG-599/U-M flange.
