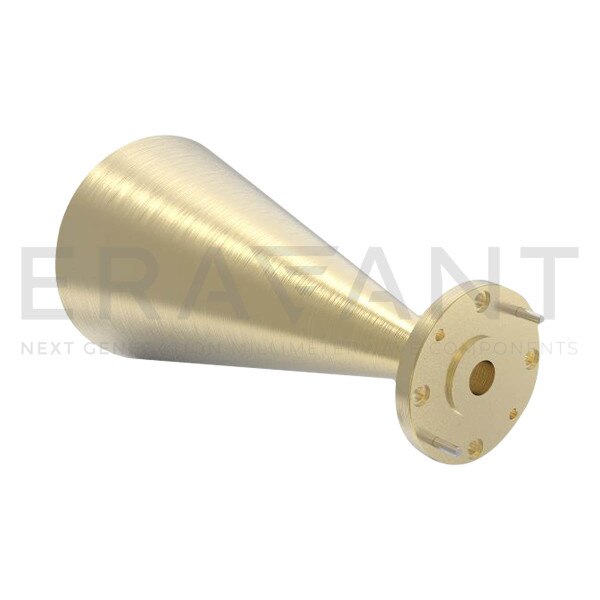

Q-Band Conical Horn Antenna

23 dBi Gain, 38.5 to 43 GHz, 0.219" Diameter Circular Waveguide
Availability:3 Days ARO
SAC-2309-219-S2 is a Q-band conical horn antenna that operates from 38.5 to 43 GHz. The antenna offers 23 dB nominal gain and a typical half powerbeam width of 11 degrees on the E-plane and 13 degrees on the H-plane. The horn also offers typical sidelobes of -20 dB on the E-plane and -28 dB on the H-plane. The conical horn can support linear and circular polarization. The input of this antenna is a 0.219" diameter circular waveguide with UG-383/U-M flange.
Login to View Pricing

Bulk Pricing

1 - 9$600.00
10 - 24$540.00
25 - 49$486.00

Bulk Pricing

Login to View Pricing

Technical Details

Minimum Frequency38.5 GHz
Maximum Frequency43 GHz
Gain23 dBi
3 dB Beamwidth, E-Plane11°
3 dB Beamwidth, H-Plane13°
Return Loss23 dB
PolarizationLinear and Circular
Antenna Port0.219" Dia Circular WG
