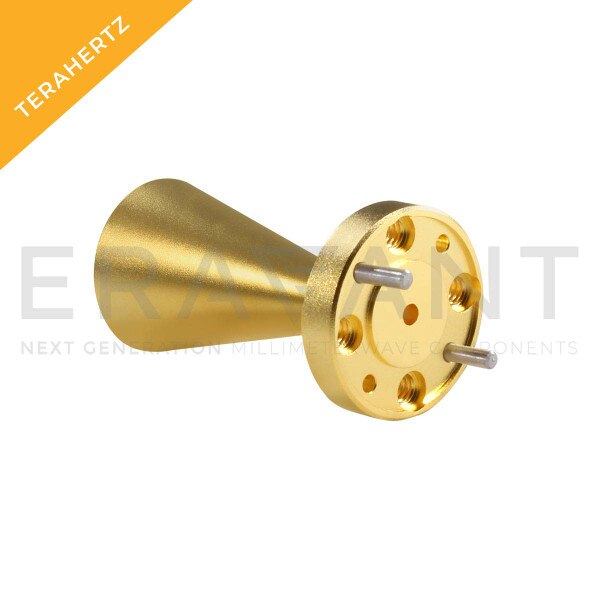

D-Band Conical Horn Antenna

23 dBi Gain, 115 to 140 GHz, 0.075" Diameter Circular Waveguide
SKU:SAC-2309-075-S2
Availability:4 to 6 Weeks ARO
SAC-2309-075-S2 is a D-band conical horn antenna that operates from 115 to 140 GHz. The antenna offers 23 dB nominal gain and a typical half powerbeam width of 11 degrees on the E-plane and 13 degrees on the H-plane. The horn also offers typical sidelobes of -20 dB on the E-plane and -28 dB on the H-plane. The conical horn can support linear and circular polarization. The input of this antenna is a 0.075" diameter circular waveguide with UG-387/U-M flange.
ECCN: EAR99
To view pricing or check order status

Bulk Pricing

QuantityPrice
1 - 9$540.00
10 - 24$486.00
25 +$437.40

Bulk Pricing

Sign In / Create An Account to view pricing

Technical Details

Minimum Frequency115 GHz
Maximum Frequency140 GHz
Gain23 dBi
3 dB Beamwidth, E-Plane11°
3 dB Beamwidth, H-Plane13°
Return Loss23 dB
PolarizationLinear and Circular
Antenna Port0.075" Dia Circular WG
