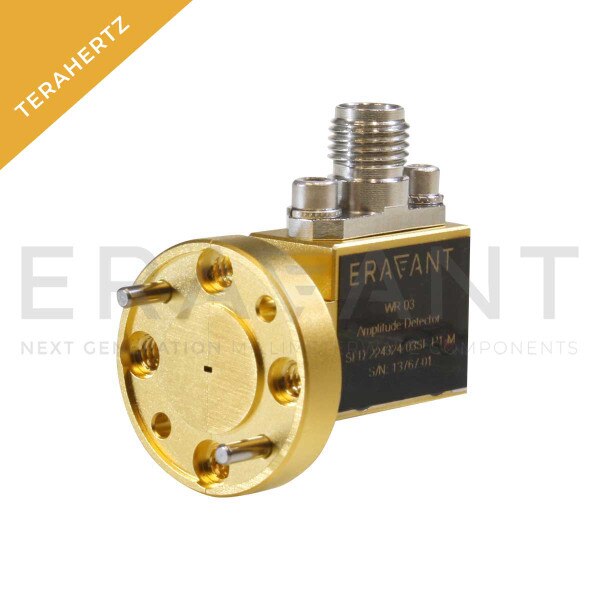

J-Band Positive Amplitude Detector

220 to 330 GHz, 800 mV/mW Sensitivity, WR-03 Waveguide
SKU:SFD-224334-03SF-P1-M
Availability:3 to 4 Weeks ARO
SFD-224334-03SF-P1-M is a WR-03 amplitude detector that can be used for full or narrow band applications. The detector is zero biased and intended for small signal detection purposes. The detector exhibits high sensitivity characteristics across the full waveguide operating bandwidth. The detector is designed to have a 10 MHz video bandwidth and a 1 MΩ video output impedance.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency220 GHz
Maximum Frequency330 GHz
Sensitivity800 mV/mW
Sensitivity Flatness
RF Input Power-20 dBm
Video Bandwidth10 MHz
Output Voltage PolarityPositive
RF PortWR-03 Waveguide
DC PortSMA (F)
