4-Port Dual-Directional Coupler

220 to 330 GHz, 10 dB Coupling, 20 dB Directivity, WR-03 Waveguide
Availability:IN STOCKPlease contact us if you need more units than what is available online.

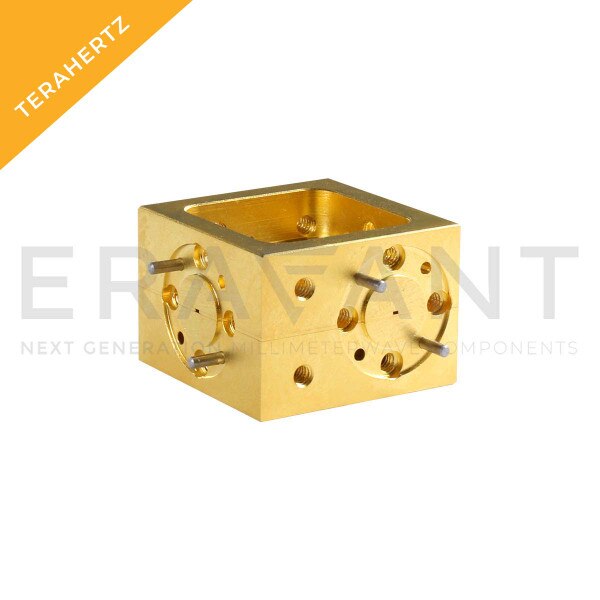

SWD-1020H-03-DB is a WR-03, four-port waveguide dual-directional coupler that delivers a 10 dB nominal coupling level and 20 dB typical directivity across the full waveguide band from 220 to 330 GHz. The dual-directional coupler uses a traditional multi-hole and split block design to achieve a flat coupling level, high directivity, and low insertion loss. The waveguide interface of the coupler is WR-03 waveguides with UG-387/U-M anti-cocking flanges. Other coupling levels including custom coupling levels and asymmetrical forward/reverse coupling levels are available under different model numbers.
Login to view pricing

Bulk Pricing

Quantity Price
1 - 2 $3,850.00
3 - 4 $3,657.50
5 - 9 $3,474.63

Bulk Availability


Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency220 GHz
Maximum Frequency330 GHz
Insertion Loss3.5 dB
Coupling10 dB
Directivity20 dB
Return Loss18 dB
Coupler Type4-Port Dual-directional, Split-block
RF PortsWR-03 WG
