J-Band, VNA Frequency Extender, Tx/Rx Module

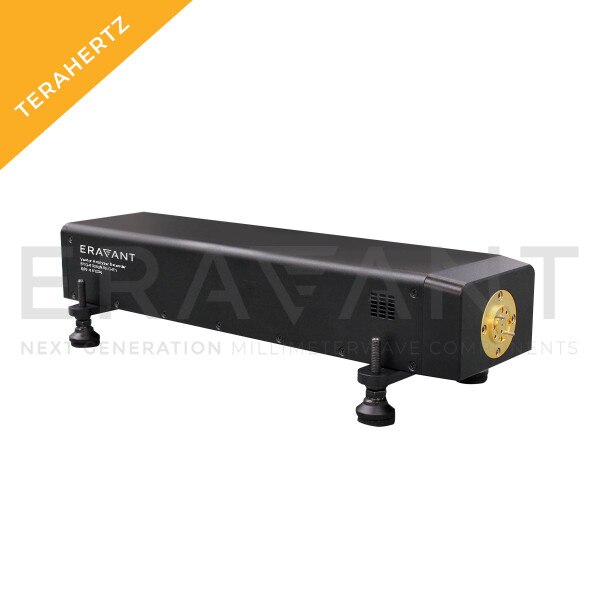

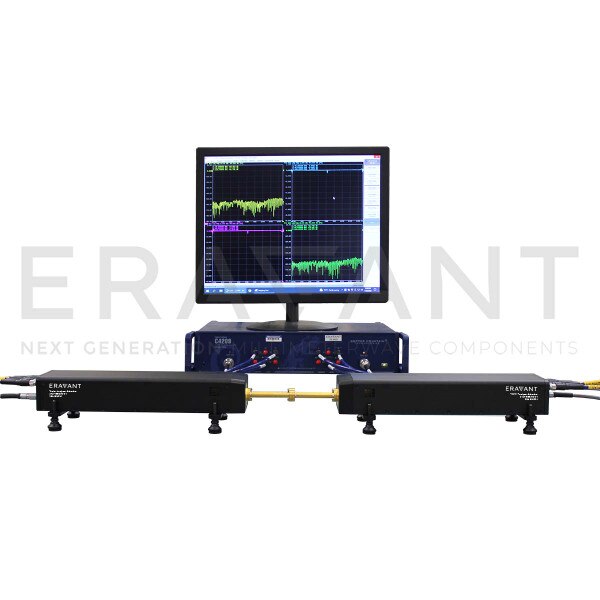

STO-03203N05-C-E1 is a J-Band vector network analyzer (VNA) frequency extender Tx/Rx designed to achieve full 2-port, S-parameter testing at 220 to 330 GHz. It is compatible with modern vector network analyzers such as the Rohde & Schwarz ZNA, Anritsu VectorStar™, Keysight PNA-X Series, and Copper Mountain CobaltFx. The VNA needs dual sources to be extended. The frequency extender can achieve a dynamic range up to 100 dB for certain passive products that require high rejection, isolation, and return loss testing such as directional couplers, orthomode transducers, and filters. An AC to DC Power adapter and a Proxi-Flange™ Contactless Flanges (STQ-WG-03025-FB-CF), are included. The Eravant Wave-Glide™ Rail System (STQ-TL-RW-S10-M1) is highly recommended for the J-Band VNA test set. Each VNA extender is packaged individually in a rugged equipment box with additional hardware and tools.
