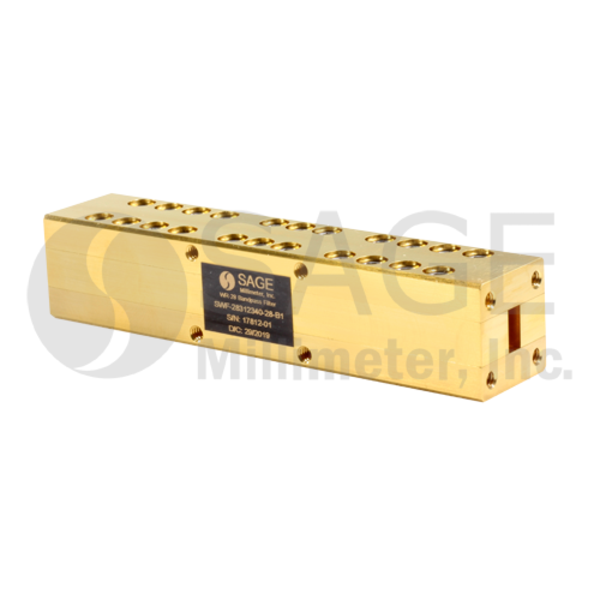

WR-28 Waveguide Bandpass Filter

22 to 34 GHz Passband, 40 dB Rejection from DC to 20 GHz and 37 to 70 GHz, Ka-Band
SKU:SWF-28312340-28-B1
Availability:1 Week ARO
SWF-28312340-28-B1 is a Ka band waveguide bandpass filter with a passband frequency from 22 to 34 GHz and the rejection frequencies of DC to 20 GHz and 37 GHz to 70 GHz, respectively. The filter provides a nominal insertion loss of 1.0 dB across its passband and a typical rejection of 40 dB. Since the high end cutoff frequency can be changed by modifying the design, custom designs can be offered under different model numbers.
ECCN: EAR99
Login to View Pricing

Bulk Pricing

QuantityPrice
1 - 4$1,700.00
5 - 9$1,530.00
10 - 24$1,377.00

Bulk Pricing

Login to View Pricing

Technical Details

Minimum Passband Frequency22 GHz
Maximum Passband Frequency34 GHz
Minimum Rejection Frequency, Low SideDC
Maximum Rejection Frequency, Low Side20 GHz
Minimum Rejection Frequency, High Side37 GHz
Maximum Rejection Frequency, High Side70 GHz
Rejection40 dB
Waveguide PortWR-28 Waveguide
