WR-34 Fixed Attenuator, Product Discontinued

22 to 33 GHz, 3 dB, WR-34 Waveguide
SKU:STA-03-34-F2
Availability:Product Discontinued
This product has been improved and is now listed as STA-03-34-F1. Read more about Limited Run Products here.

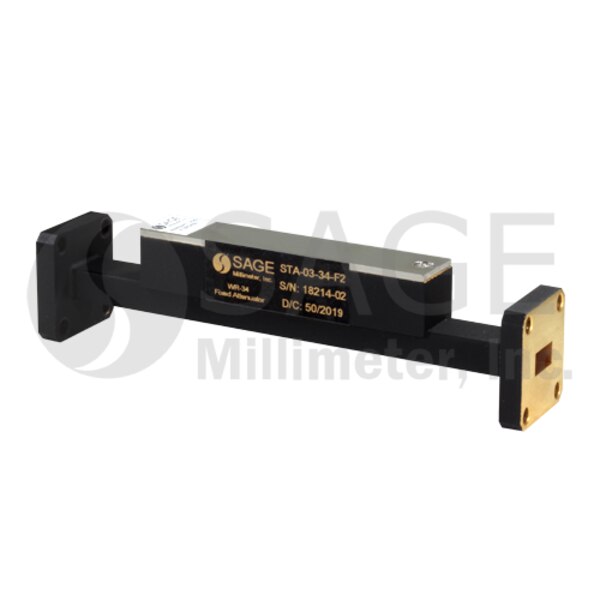

STA-03-34-F2 is a 3 dB fixed attenuator that is used in millimeterwave systems and operates from 22 to 33 GHz. The attenuator has a fixed attenuation value of 3 dB at center frequency, 27.5 GHz. While the attenuator is designed and fabricated for full waveguide band applications, the attenuation value of this model does show a minor slope within the band due to its distinct mechanical configuration. Various attenuation values are available under different model numbers.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Quantity Price
1 - 24 $490.00
25 - 49 $441.00
50 - 99 $396.90

Bulk Availability

QuantityAvailability

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency22 GHz
Maximum Frequency33 GHz
Attenuation3 dB @ 27.5 GHz
Return Loss23 dB
Power Handling0.75 W
RF PortWR-34 Waveguide
Attenuator TypeFixed
