Faraday Isolator

22 to 33 GHz, 28 dB Isolation, 1.3 dB Insertion Loss, WR-34 Waveguide

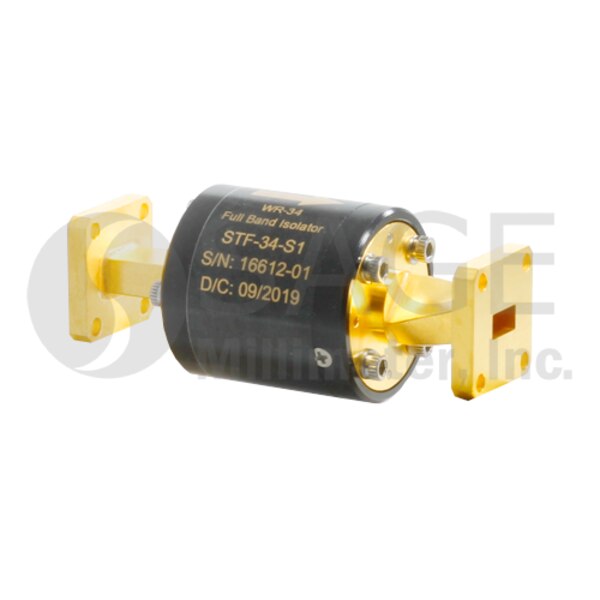

STF-34-S1 is a full band Faraday isolator that operates from 22 to 33 GHz. The Faraday isolator is constructed with a longitudinal, magnetized ferrite rod that causes a Faraday rotation of the incoming RF signal. The Faraday isolator offers 28 dB typical isolation and a 1.3 dB nominal insertion loss with good flatness. The return loss of the isolator is 14 dB. The input and output ports are WR-34 waveguides with UG-1530/U flanges.
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency22 GHz
Maximum Frequency33 GHz
Insertion Loss1.3 dB
Isolation28 dB
Return Loss14 dB
Power Handling1.8 W
RF PortWR-34 Waveguide
