Full Waveguide Junction Circulator

22 to 33 GHz, 18 dB Isolation, WR-34 Waveguide
SKU:SNF-34-C5
Availability:IN STOCKPlease contact us if you need more units than what is available online.

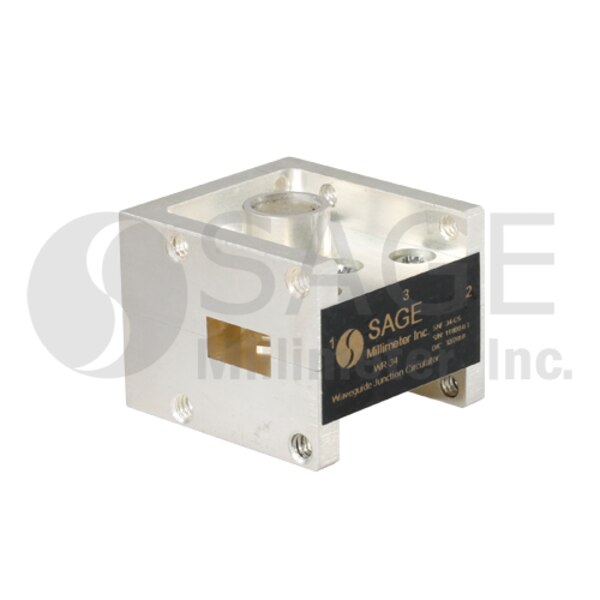

SNF-34-C5 is a WR-34 band, waveguide junction circulator that covers the frequency range of 22 to 33 GHz. The full band circulator is designed and manufactured to provide a low insertion loss of 0.5 dB with good flatness. The circulator also offers a moderate isolation of 18 dB for system integration. The input and output ports are WR-34 waveguides with UG-1530/U flanges.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency22 GHz
Maximum Frequency33 GHz
Insertion Loss0.5 dB
Isolation18 dB
Return Loss18 dB
Forward Power Handling25 W
Reverse Power Handling-
RF PortWR-34 Waveguide
Device TypeCirculator
