WR-34 Waveguide Shim

22 to 33 GHz, 0.138" (L) Insertion Length, 138 Mils, 1/4 λg
SKU:SWI-34138-SB
Availability:IN STOCKPlease contact us if you need more units than what is available online.

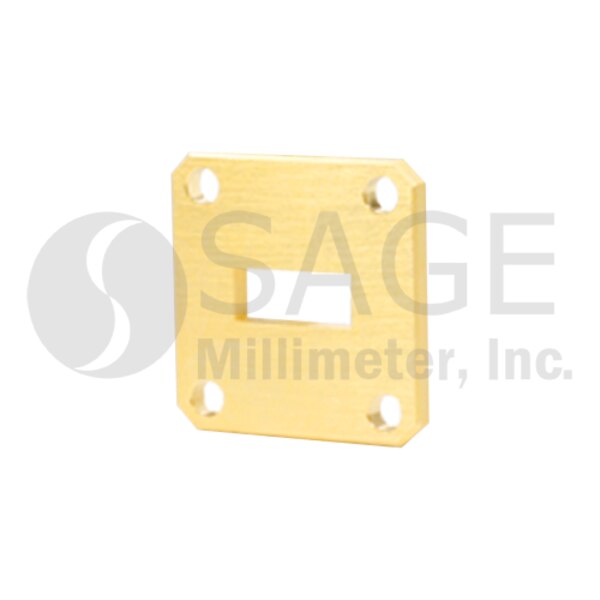

SWI-34138-SB is a 0.138" thick, 1/4 wavelength, instrumentation grade WR-34 Band waveguide spacer (shim) with WR-34 window and UG-1530/U square flange. The spacer is manufactured with a precision machining process to ensure high quality and ruggedness. The spacer is offered to cover the frequency range of 22 to 33 GHz.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency22 GHz
Maximum Frequency33 GHz
Insertion Length0.138" (L)
Mil138
WaveguideWR-34 Waveguide
