WR-28 Waveguide Lowpass Filter

22 to 32 GHz, 40 dB Rejection from DC to 17 GHz and 37 to 75 GHz, Ka-Band
SKU:SWF-32335340-28-L1
Availability:IN STOCKPlease contact us if you need more units than what is available online.

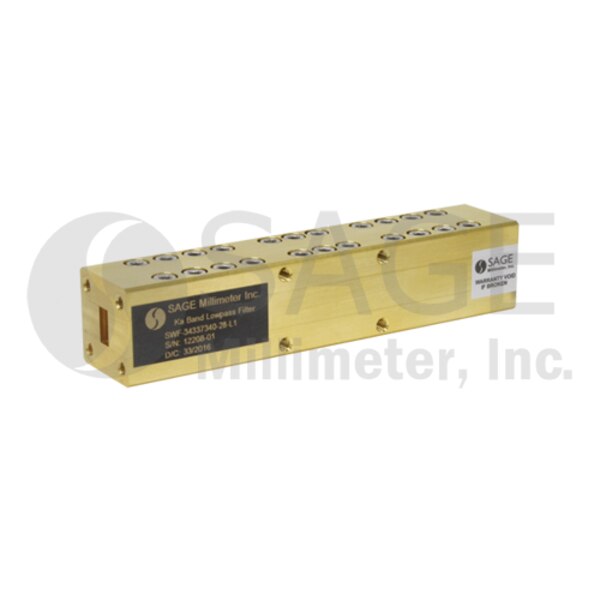

SWF-32335340-28-L1 is a Ka band waveguide lowpass filter with a passband frequency from 22 to 32 GHz and a rejection frequency of 35 GHz to 75 GHz. The filter provides a nominal insertion loss of 1 dB across its passband and a typical rejection of 40 dB. Since the high end cutoff frequency can be changed by modifying the design, custom designs can be offered under different model numbers.
ECCN: EAR99
Login to view pricing

Technical Details

Minimum Passband Frequency22 GHz
Maximum Passband Frequency32 GHz
Minimum Rejection Frequency, Low SideDC
Maximum Rejection Frequency, Low Side17 GHz
Minimum Rejection Frequency, High Side37 GHz
Maximum Rejection Frequency, High Side75 GHz
Rejection40 dB
Waveguide PortWR-28 Waveguide
