Ka-Band Lens Corrected Antenna

This model may be purchased with optional antenna testing services.
A gain measurement test is offered under service number FTA-0400GAIN-06D.
A 2D pattern measurement test is offered under service number FTA-0400PATT-06D.

CLICK HERE to read more about our antenna measurement capabilities.

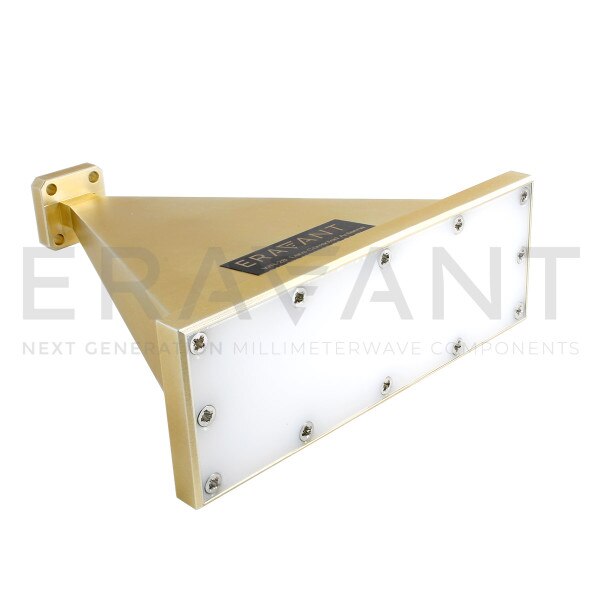

SAL-2734032220-28-S1-RL is a Ka-band lens corrected antenna that operates from 26.5 to 40.0 GHz. At a center frequency of 33.25 GHz, the antenna delivers 22 dBi nominal gain, 20.0 degrees typical half power beamwidth on the E-plane, and 8.0 degrees typical half power beamwidth on the H-plane. The antenna employs a low loss lens to offer excellent aperture efficiency and low sidelobe levels. The lens corrected antenna is equipped with a standard WR-28 waveguide and UG-599/U flange as its input port. It supports linear polarized waveforms.
