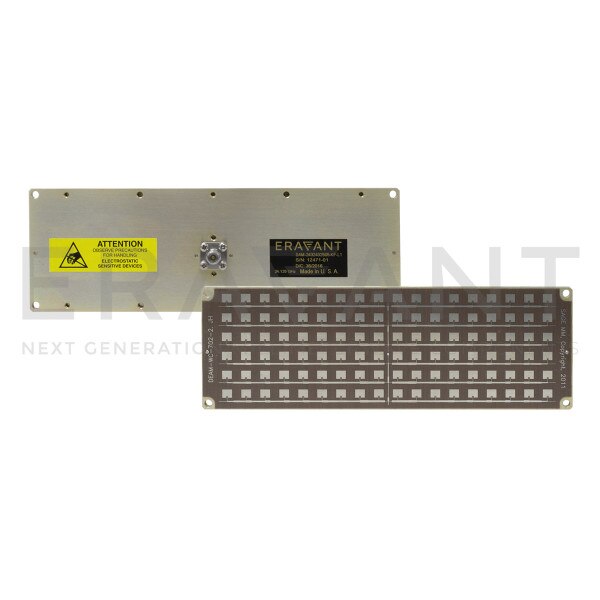

K-Band Microstrip Patch Array Antenna

22 dBi Gain, 24.025 to 24.225 GHz, 14.6 x 4.6° Beamwidth, 2.92 mm (F)
SKU:SAM-2432432205-KF-L1
SAM-2432432205-KF-L1 is a linear polarized, 24 GHz microstrip patch array antenna. The antenna implements a series-fed power distribution to achieve low sidelobe levels. The antenna has a gain of 22 dBi and a beamwidth of 14.6 degrees vertically and 4.6 degrees horizontally, with a better than -22 dB sidelobe suppression level. The antenna is constructed with a high performing, low loss soft microwave substrate to achieve the best performance in the class. The RF interface is a female 2.92 mm connector. A standard WR-42 waveguide version with a UG-595/U flange is offered under model number SAM-2432432205-42-L1.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency24.025 GHz
Maximum Frequency24.225 GHz
Gain22 dBi
3 dB Beamwidth (Vertical, Horizontal)14.6°, 4.6°
Sidelobe Level-24 dB
Return Loss8 dB
PolarizationLinear
Antenna Port2.92 mm (F)
