K-Band Microstrip Patch Array Antenna

22 dBi Gain, 24.025 to 24.225 GHz, 12 x 12° Beamwidth, K-Band
SKU:SAM-2432432212-42-L1
Availability:IN STOCKPlease contact us if you need more units than what is available online.

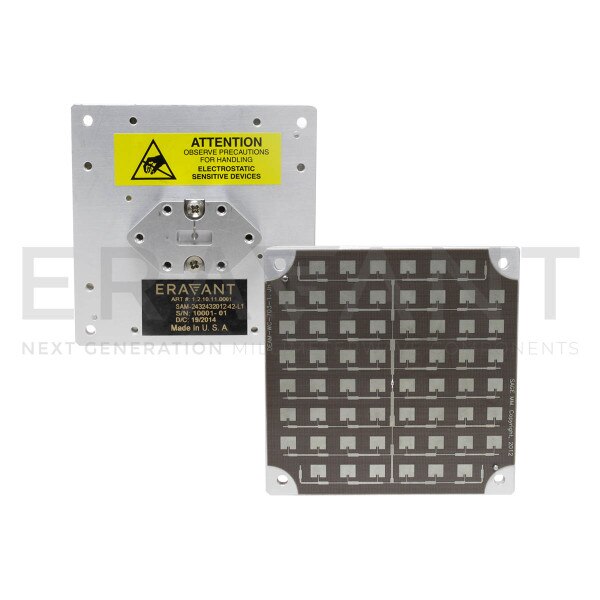

SAM-2432432212-42-L1 is a linear polarized, 24.125 GHz microstrip patch array antenna. The antenna implements a series-fed power distribution to achieve low sidelobe levels. The antenna has a gain of 22 dBi and a beamwidth of 12 degrees both vertically and horizontally, with a better than -20 dB sidelobe suppression level. The antenna is constructed with a high performing, low loss soft microwave substrate to achieve the best performance in the class. The RF interface is a standard WR-42 waveguide with a UG-595/U flange. A female 2.92 mm connector version is offered under model number SAM-2432432212-KF-L1.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency24.025 GHz
Maximum Frequency24.225 GHz
Gain22 dBi
3 dB Beamwidth (Vertical, Horizontal)12°, 12°
Sidelobe Level-24 dB
Return Loss8 dB
PolarizationLinear
Antenna PortWR-42 Waveguide
