WR-62 Coaxial Rectangular Horn Antenna

20 dBi Gain, 11.9 to 18 GHz, SMA (F), Right Angle, Ku-Band
SKU:SAR-2018-62SF-R3
Availability:Contact Us for Quote

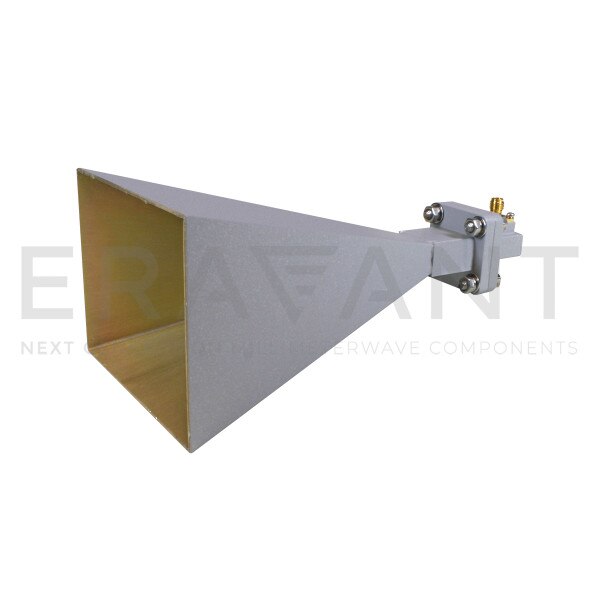

SAR-2018-62SF-R3 is a Ku-band pyramidal horn antenna with a right angle (90°) SMA type coax connector to cover the frequency range of 11.9 GHz to 18 GHz. The antenna offers 20 dBi nominal gain and a typical half power beamwidth of 17 degrees on the E-plane and 19 degrees on the H-plane. The antenna supports linear polarized waveforms.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency11.9 GHz
Maximum Frequency18 GHz
Gain20 dBi
3 dB Beamwidth, E-Plane17°
3 dB Beamwidth, H-Plane19°
Return Loss18 dB
Antenna Port90° SMA Female
