WR-22 Coaxial Rectangular Horn Antenna

This model may be purchased with optional antenna testing services.
A gain measurement test is offered under service number FTA-0500GAIN-AA.
A 2D pattern measurement test is offered under service number FTA-0500PATT-AA.

CLICK HERE to read more about our antenna measurement capabilities.

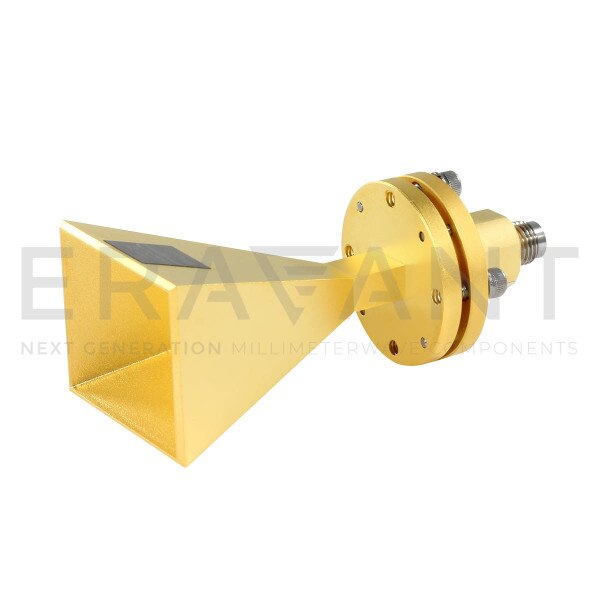

SAR-2013-22VF-E2 is a Q-band pyramidal horn antenna antenna with a end launch (180°) 1.85 mm (F) coax connector to cover the frequency range of 33.0 GHz to 50 GHz. The antenna offers 20 dBi nominal gain and a typical half power beamwidth of 15 degrees on the E-plane and 16 degrees on the H-plane. The antenna supports linear polarized waveforms. The model with 1.85 mm (M) connector is offered under model number SAR-2013-22VM-E2.
