WR-15 Waveguide Rectangular Horn Antenna

20 dBi Gain, 50 to 75 GHz, V-Band
SKU:SAR-2013-15-S2
Availability:IN STOCKPlease contact us if you need more units than what is available online.

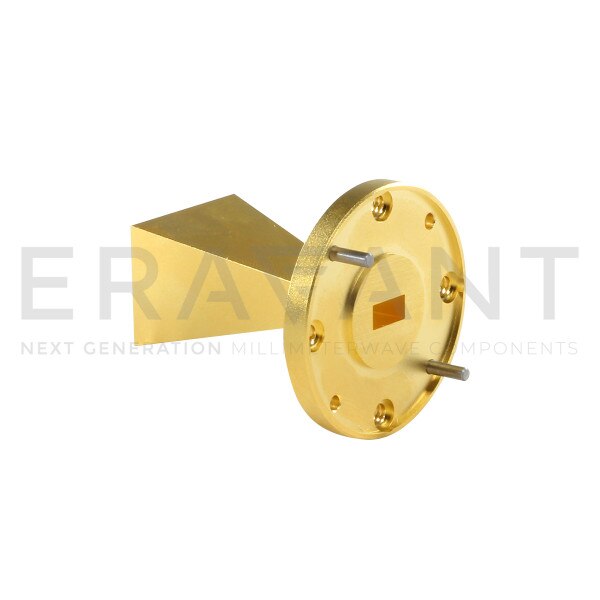

SAR-2013-15-S2 is a V-band pyramidal horn antenna that operates from 50 to 75 GHz. The antenna offers 20 dBi nominal gain and a typical half power beamwidth of 14 degrees on the E-plane and 15 degrees on the H-plane. The antenna supports linear polarized waveforms. The input of this antenna is a WR-15 waveguide with UG-385/U flange.
ECCN: EAR99
Login to View Pricing

Bulk Pricing

Quantity Price
1 - 9 $540.00
10 - 24 $486.00
25 - 49 $437.40

Bulk Availability

QuantityAvailability
1 - 18In Stock

Bulk Pricing

Login to View Pricing

Technical Details

Minimum Frequency50 GHz
Maximum Frequency75 GHz
Gain20 dBi
3 dB Beamwidth, E-Plane14°
3 dB Beamwidth, H-Plane15°
VSWR1.15
Antenna PortWR-15 Waveguide
