WR-08 Waveguide Conical Horn Antenna

20 dBi Gain, 100 to 112 GHz, F-Band
SKU:SAC-2012-08-S2
Availability:4 to 6 Weeks ARO

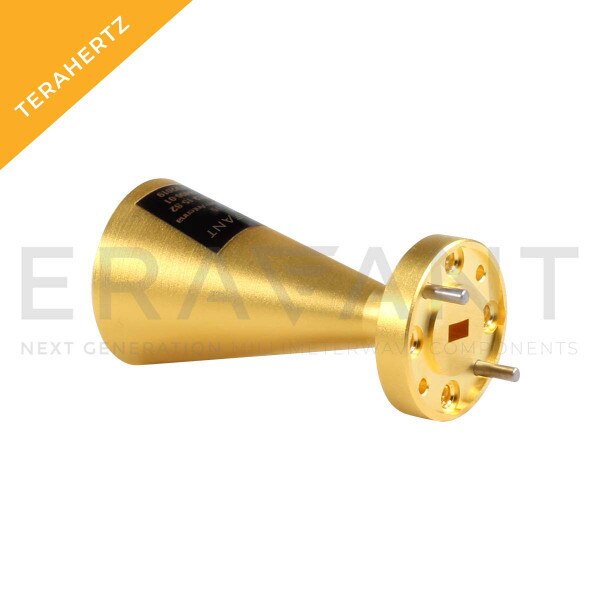

SAC-2012-08-S2 is an F-band conical horn antenna that operates from 100 to 112 GHz. The antenna offers 20 dB nominal gain and a typical half powerbeam width of 16 degrees on the E-plane and 20 degrees on the H-plane. The horn also offers typical sidelobes of -20 dB on the E-plane and -28 dB on the H-plane. The conical horn can support linear polarization. The input of this antenna is a WR-08 waveguide with UG-387/U-M flange.
ECCN: EAR99
Login to View Pricing

Bulk Pricing

QuantityPrice
1 - 9$600.00
10 - 24$540.00
25 - 49$486.00

Bulk Pricing

Login to View Pricing

Technical Details

Minimum Frequency100 GHz
Maximum Frequency112 GHz
Gain20 dBi
3 dB Beamwidth, E-Plane16°
3 dB Beamwidth, H-Plane20°
Return Loss23 dB
PolarizationLinear
Antenna PortWR-08 Waveguide
