Q-Band Conical Horn Antenna

This model may be purchased with optional antenna testing services.
A gain measurement test is offered under service number FTA-0500GAIN-AA.
A 2D pattern measurement test is offered under service number FTA-0500PATT-AA.

CLICK HERE to read more about our antenna measurement capabilities.

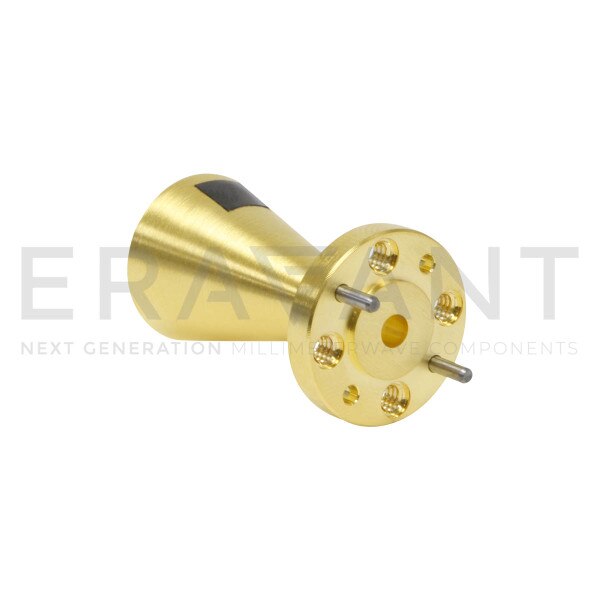

SAC-2012-219-S2 is a Q-band conical horn antenna that operates from 38.5 to 43 GHz. The antenna offers 20 dB nominal gain and a typical half powerbeam width of 16 degrees on the E-plane and 20 degrees on the H-plane. The horn also offers typical sidelobes of -20 dB on the E-plane and -28 dB on the H-plane. The conical horn can support linear and circular polarization. The input of this antenna is a 0.219" diameter circular waveguide with UG-383/U-M flange.
