W-Band Conical Horn Antenna, Limited Run

20 dBi Gain, 87 to 100 GHz, 0.094" Diameter Circular Waveguide
SKU:SAC-2012-094-S2-2
Availability:IN STOCKPlease contact us if you need more units than what is available online.
This is a Limited Run model, so inventory may not be restocked. Customers who anticipate long-term requirements should consider SAC-2012-094-S2 as an alternative solution. Read more about Limited Run Products here.

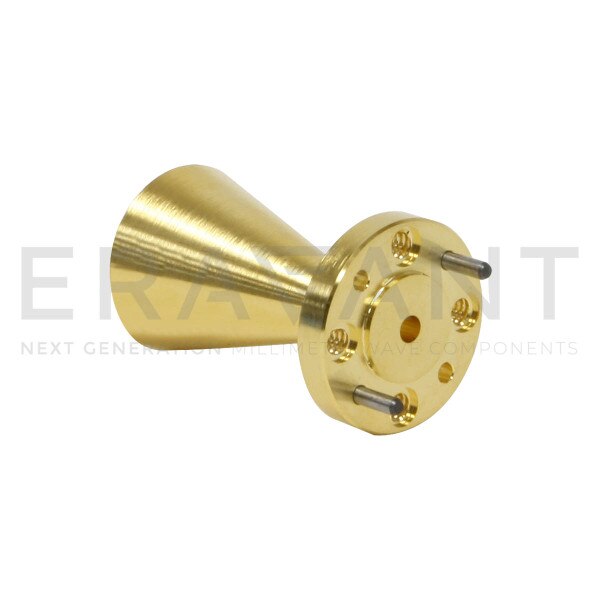

SAC-2012-094-S2-2 is a W-band conical horn antenna that operates from 87 to 100 GHz. The antenna offers 20 dBi nominal gain and a typical half power beamwidth of 14 degrees on the E-plane and 17 degrees on the H-plane. The horn also offers typical sidelobes of -20 dB on the E-plane and -28 dB on the H-plane. The conical horn can support linear and circular polarization. The input of this antenna is a 0.094” diameter circular waveguide with UG-387/U-M flange.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Quantity Price
1 - 24 $441.00
25 - 49 $396.90
50 - 99 $357.21

Bulk Availability

QuantityAvailability

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency87 GHz
Maximum Frequency100 GHz
Gain20 dBi
3 dB Beamwidth, E-Plane14°
3 dB Beamwidth, H-Plane17°
Return Loss23 dB
PolarizationLinear and Circular
Antenna Port0.094" Dia Circular WG
