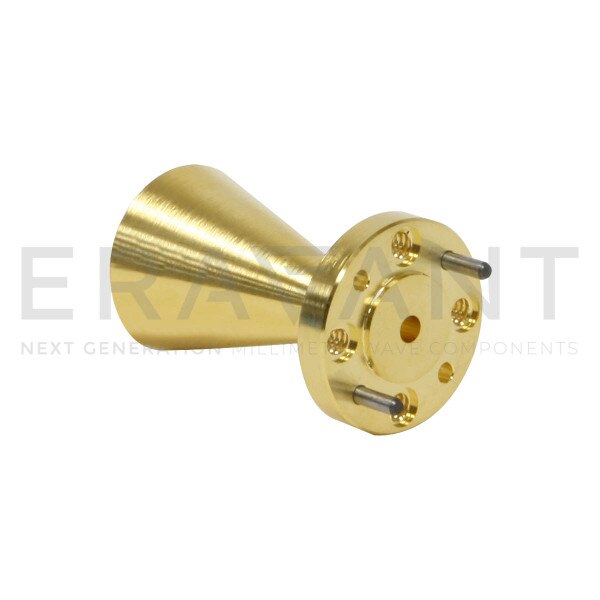

W-Band Conical Horn Antenna

20 dBi Gain, 87 to 100 GHz, 0.094" Diameter Circular Waveguide
SKU:SAC-2012-094-S2
Availability:IN STOCKPlease contact us if you need more units than what is available online.
SAC-2012-094-S2 is a W-band conical horn antenna that operates from 87 to 100 GHz. The antenna offers 20 dB nominal gain and a typical half powerbeam width of 16 degrees on the E-plane and 20 degrees on the H-plane. The horn also offers typical sidelobes of -20 dB on the E-plane and -28 dB on the H-plane. The conical horn can support linear and circular polarization. The input of this antenna is a 0.094" diameter circular waveguide with UG-387/U-M flange.
ECCN: EAR99
To view pricing or check order status

Bulk Pricing

QuantityPrice
1 - 24$490.00
25 - 49$441.00
50 +$396.90

Bulk Pricing

Sign In / Create An Account to view pricing

Technical Details

Minimum Frequency87 GHz
Maximum Frequency100 GHz
Gain20 dBi
3 dB Beamwidth, E-Plane16°
3 dB Beamwidth, H-Plane20°
Return Loss23 dB
PolarizationLinear and Circular
Antenna Port0.094" Dia Circular WG
