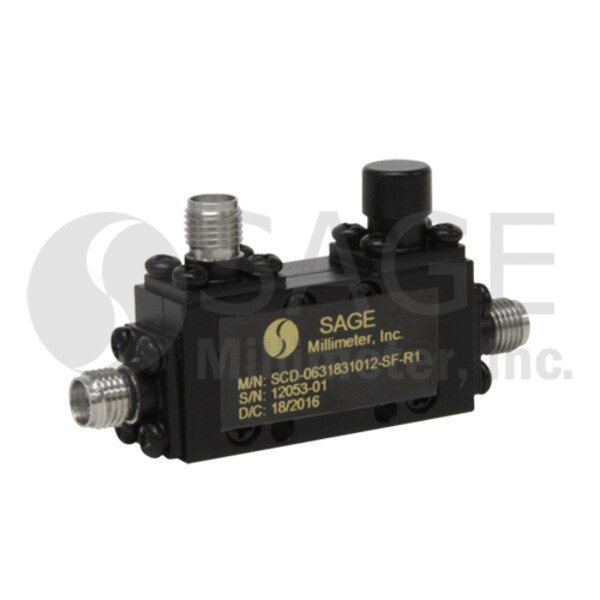

Coaxial Directional Coupler

20 dB Coupling, 6 to 18 GHz, SMA (F), 30 Watts
SKU:SCD-0631832012-SF-SA
Availability:IN STOCKPlease contact us if you need more units than what is available online.
SCD-0631832012-SF-SA is a 20 dB coaxial directional coupler that covers the frequency range of 6 to 18 GHz. The nominal insertion loss of the coupler is 1.0 dB and the coupling ripple is ± 1.0 dB. The directivity of the coupler is 12 dB. The RF connectors of the coupler are SMA female connectors. The power handling of the coupler is 30 watts maximum. Other configurations, such as different connectors for input and output, are available under different model numbers.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency6 GHz
Maximum Frequency18 GHz
Insertion Loss1.0 dB
Coupling20 dB
Power Handling30 Watts
Directivity12 dB
Port Return Loss14 dB
Impedance50 Ohms
RF PortSMA Female
