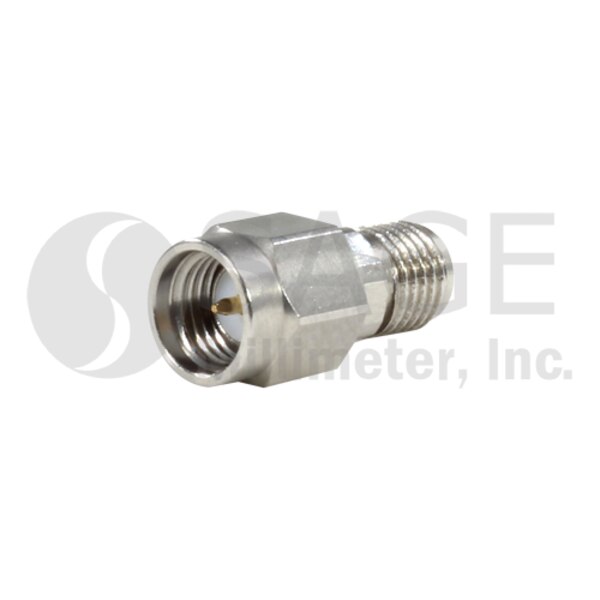

Coaxial Fixed Attenuator, Limited Run

20 dB Attenuation, SMA (M) to (F), DC to 26.5 GHz, 2 Watt
SKU:SCA-20-SMSF-S9
Availability:IN STOCKPlease contact us if you need more units than what is available online.
This is a Limited Run model, so inventory may not be restocked. Customers who anticipate long-term requirements should consider SCA-20-3M3F-S2 as an alternative solution. Read more about Limited Run Products here.

SCA-20-SMSF-S9 is a 20 dB coaxial attenuator that is used in millimeterwave systems and operates from DC to 26.5 GHz. The attenuator has a typical attenuation value of 20 dB across the frequency range. While the attenuator is designed and fabricated for full SMA coaxial band applications, the attenuation value of this model will have a wide range due to its broadband coverage. Various attenuation values are available under different model numbers.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Quantity Price
1 - 24 $140.00
25 - 49 $126.00
50 - 99 $113.40

Bulk Availability

QuantityAvailability

Bulk Pricing

Login to view pricing

Technical Details

Minimum FrequencyDC
Maximum Frequency26.5 GHz
Attenuation20 dB
Return Loss20 dB
Power Handling2 W
Connector 1SMA Male
Connector 2SMA Female
