Airborne Rectangular Horn Antenna

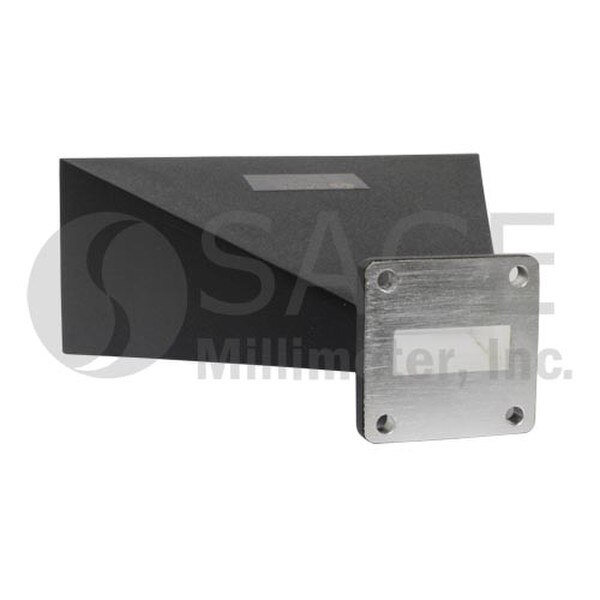

SAK-AR073123-96-C1 is a custom built, airborne WR-96 rectangular antenna. At center frequency, the antenna delivers a typical gain of 20.3 dBi and a half power beamwidth of 16 degrees on the E-plane and 20 degrees on the H-plane. The cross polarization of the antenna is 38 dB typical on the E-plane and 33 dB on the H-plane and the typical return loss is 14 dB. This antenna is equipped with a WR-96 rectangular waveguide and UG-39/U flange as its input port. By adding a waveguide to coax adapter, Eravant model number SWK-WC96NF-K1, the input port becomes a female N coax connector.
