SMA Coaxial Bandpass Filter

2 to 18 GHz, 40 dB Rejection
Availability:IN STOCKPlease contact us if you need more units than what is available online.

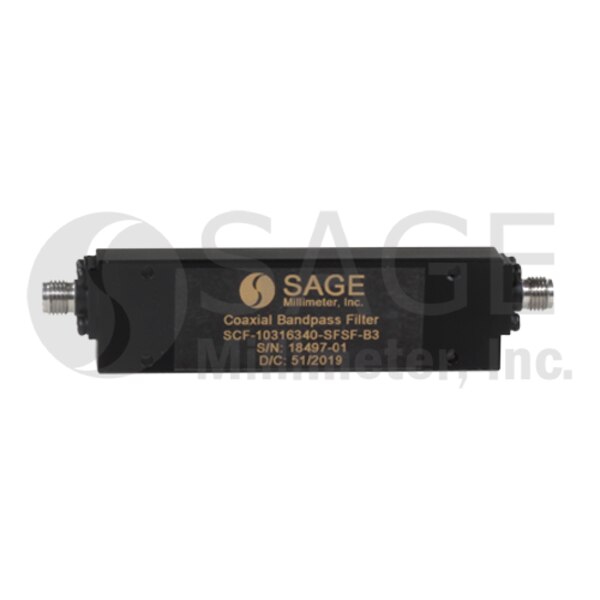

SCF-10316340-SFSF-B3 is a coaxial bandpass filter with a passband frequency of 2 to 18 GHz. The typical insertion loss of the bandpass filter is 1.0 dB and the passband ripple is ±0.5 dB. The rejection frequencies are 1.5 GHz or less and 18.75 GHz or higher to 40 GHz. The typical rejection is 40 dB and the typical passband return loss of the filter is 10 dB. The RF connectors of the the filter are SMA Female connectors. Other configurations are available under different model numbers.
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Passband Frequency2 GHz
Maximum Passband Frequency18 GHz
Low Side Rejection60 dB
High Side Rejection40 dB
Return Loss10 dB
Insertion Loss1 dB
Impedance50 Ohms
RF PortsSMA (F)
