Coaxial Fixed Attenuator

2 dB Attenuation, 2.4 mm (M) to (F), DC to 50 GHz, 1 Watt
Availability:IN STOCKPlease contact us if you need more units than what is available online.

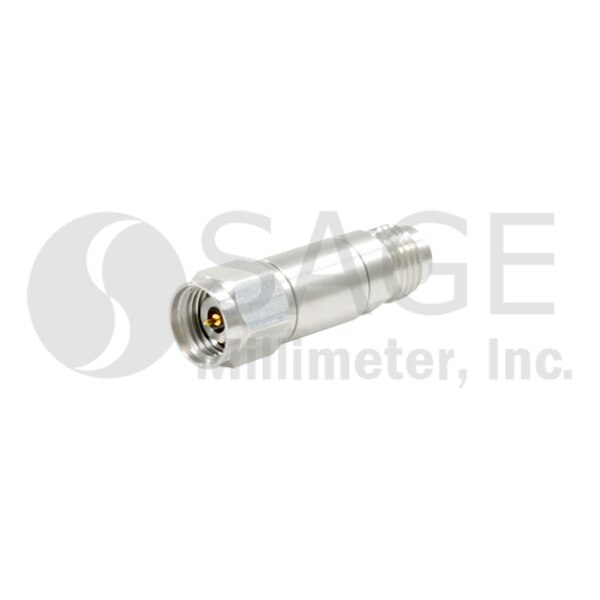

Model SCA-02-2M2F-S2 is a 2 dB coaxial attenuator that is used in millimeterwave systems and operates from DC to 50 GHz. The attenuator has a typical attenuation value of 2 dB across the frequency range. While the attenuator is designed and fabricated for full 2.4 mm coaxial band applications, the attenuation value of this model will have a wide range due to its broadband coverage. Various attenuation values are available under different model numbers.
Login to view pricing

Bulk Pricing

Quantity Price
1 - 24 $335.00
25 - 49 $301.50
50 - 99 $271.35

Bulk Availability

1 - 10In Stock

Bulk Pricing

Login to view pricing

Technical Details

Minimum FrequencyDC
Maximum Frequency50 GHz
Attenuation2 dB
Return Loss19 dB
Power Handling1 W
Connector 12.4 mm Male
Connector 22.4 mm Female
