Broadband Quadrature Mixer

18 to 65 GHz, DC to 20 GHz IF, +18 dBm LO Power, 1.85 mm (F)

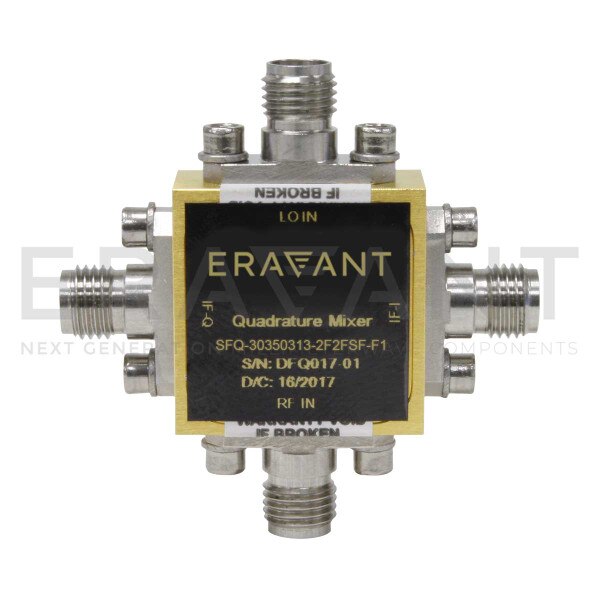

SFQ-18365315-VFVFSF-N1-M is a broadband quadrature mixer that covers the frequency range of 18 to 65 GHz. The typical conversion loss of the quadrature mixer is 15 dB with an LO driving power of +18 dBm. The typical LO to RF port isolation is 45 dB. Since the IF port of the quadrature mixer is DC coupled, the mixer can be used as a phase detector. In addition, the mixer can be readily configured into an image rejection mixer or single sideband modulator by adding an IF quadrature coupler.
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum RF Frequency18 GHz
Maximum RF Frequency65 GHz
Minimum LO Frequency18 GHz
Maximum LO Frequency65 GHz
Minimum IF FrequencyDC
Maximum IF Frequency20 GHz
LO Pumping Power+18 dBm
Conversion Loss15 dB
RF Port1.85 mm (F)
