Broadband Low Noise Amplifier

18 to 42 GHz, 28 dB Gain, 4.0 dB Noise Figure, 2.92 mm (F), USB Supply
Availability:IN STOCKPlease contact us if you need more units than what is available online.

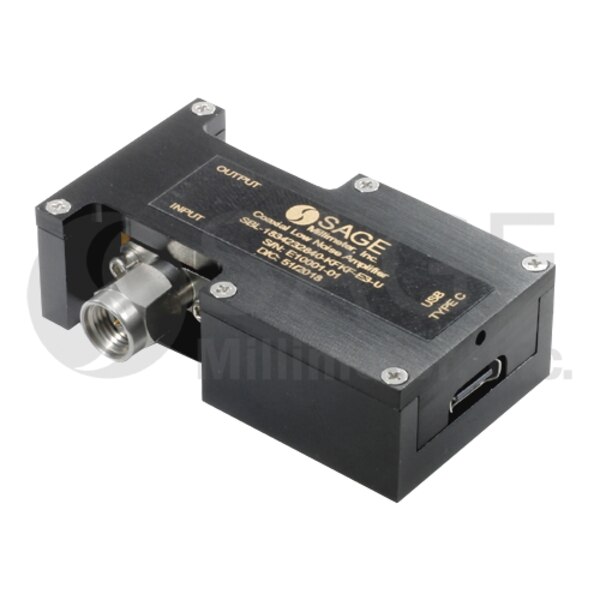

SBL-1834232840-KFKF-E3-U is a low noise amplifier with a typical small signal gain of 28 dB and a nominal noise figure of 4 dB across the frequency range of 18 to 42 GHz. DC supply is provided with a locking USB Type-C connector for supply via portable devices. The DC power requirement for the amplifier is +5 VDC/240 mA. The amplifier incorporates a regulator, allowing for full compatibiliy with the USB Type-C power bus, and is protected by a metal enclosure. The input and output ports are female K connectors. Other port configurations are available under different model numbers. Compatible with portable spectrum analyzers such as Anritsu Spectrum Master MS2760A and MS2760T (32 and 43 GHz) and Keysight FieldFox Handheld Microwave Analyzer N9918. For Keysight Models N9951, and N9950 SBL-1834232840-VFVF-E3-U is recommended.

Your application may require a heatsink. Visit our Heatsink Blog for assistance with choosing an appropriate heatsink for use with this model.
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency18 GHz
Maximum Frequency42 GHz
Gain28 dB
Noise Figure4.0 dB
P1dB+14 dBm
Input Return Loss10 dB
Output Return Loss10 dB
DC Bias+5 VDC/240 mA
RF Input/Output2.92 mm (F)
